Name: China Trunk Mounted Mobile Fuel Dispenser Manufacturers Factory - Eaglestar Energy Tech
Brand: Eaglestar
SKU: 311950766

Products Description

Noise Level	≤75dB
Ambient temperature	-20℃ - +50℃
Relative humidity	≤95%
Pump inlet vacuum	≥54kPa
Explosion proof class	Exdmb II AT3 GB
Input power supply	220V AC or 24V DC
Communication Mode	/
Range of flow rate	5-50 L/min
Minimum measured	5 L/min
Accuracy	±0.25%
Digits of Display	Sale: 7digits
	Liter: 7digits
Range of electronic totalizer	Sale: 0.00-99999999.99
	Liter: 0.00-99999999.99
Digits of Unit Price	5 digits
Range of electromagnetic totalizer	(0-99999999)

Standard features

Standard duty: 50 liter per min.
4-piston flow meter
220V AC pump available
Without DC or AC pump, submersible type
Italy PIUSI high quality DC 24V pump

Optional features

7-7-5 LCD display (standard 6-6-4)
Heavy duty: 70 liter per min.
24V DC pump and motor
Emergency button stop
Customized logo paining on front pane
Italy PIUSI BRAND DC PUMP

model

Model

Pump

Nozzle Fuel Product

Diemnsion

EGM-111G-C18 50L/M

G: gear pump

S: submersible type

1 hose, 1 product, 1display

Package: 600*520*790

EGM-111S-H21 50L/M

Package: 700*490*1040

Why Choose Eaglestar EGM

Fuel Wherever You Need It

The Eaglestar EGM Truck-Mounted Mobile Fuel Dispenser brings fuel directly to your operation site, reducing downtime caused by long-distance refueling. It is ideal for mining, construction, fleet management, agriculture, and emergency fueling applications.

Flexible Power Options

Designed for different working environments, the EGM supports 24V DC vehicle power, 220V AC power supply, and engine-driven operation, ensuring reliable fuel transfer even in remote areas.

Accurate Fuel Management

Equipped with a precision flow meter, the EGM provides accurate fuel measurement and helps operators track fuel consumption, reduce waste, and improve fleet management efficiency.

Durable and Space-Saving Design

The compact truck-mounted structure saves installation space while protecting key components during transportation. Built for outdoor environments, it delivers reliable performance in harsh working conditions.

Safe and Reliable Refueling

With safety features such as emergency shut-off, anti-static hose, grounding protection, and automatic nozzle shut-off, the EGM helps ensure safer fuel transfer operations.

Reduce Downtime, Improve Efficiency

By bringing fuel directly to vehicles and equipment, the EGM minimizes unnecessary trips and keeps fleets and heavy machinery operating efficiently.

Mechanical Parts

Nozzle and hose

flow meter

gear pump

hanger

Electronic Parts

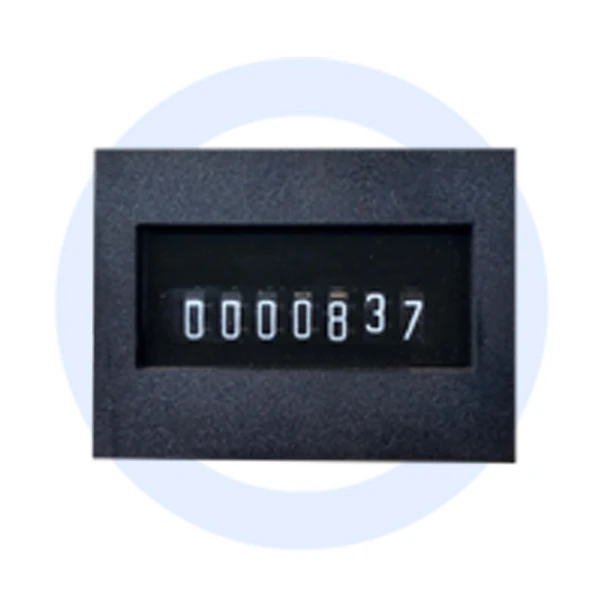

Electromagnet totalizer

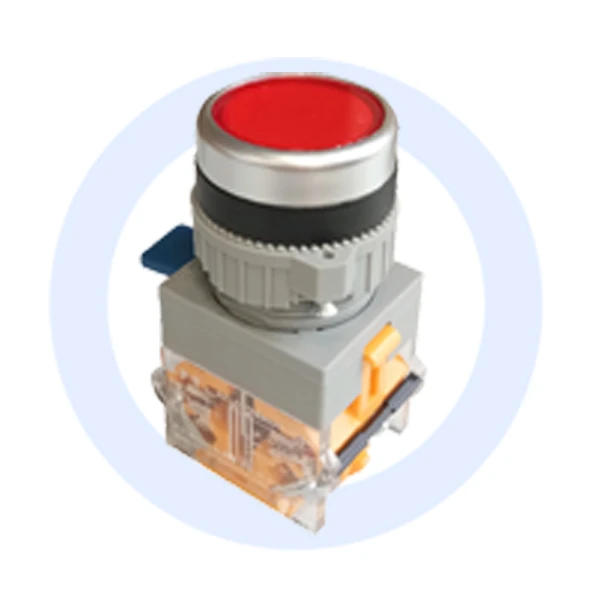

Emergency stop button

Explosion proof

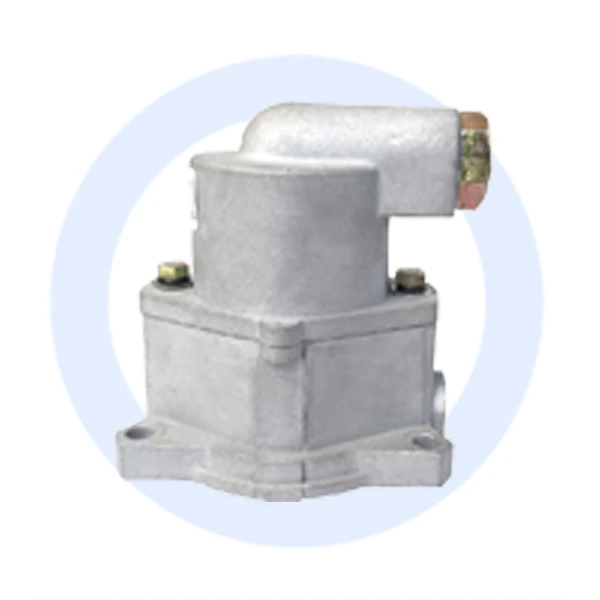

Explosion proof pulser

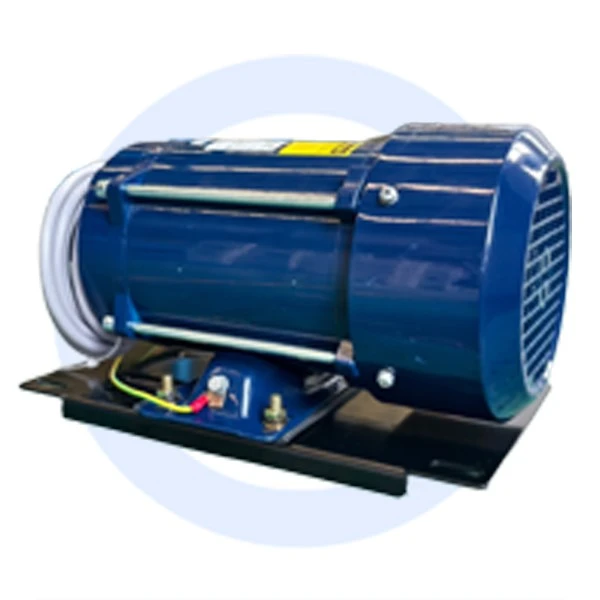

Explosion proof motor

LCD display

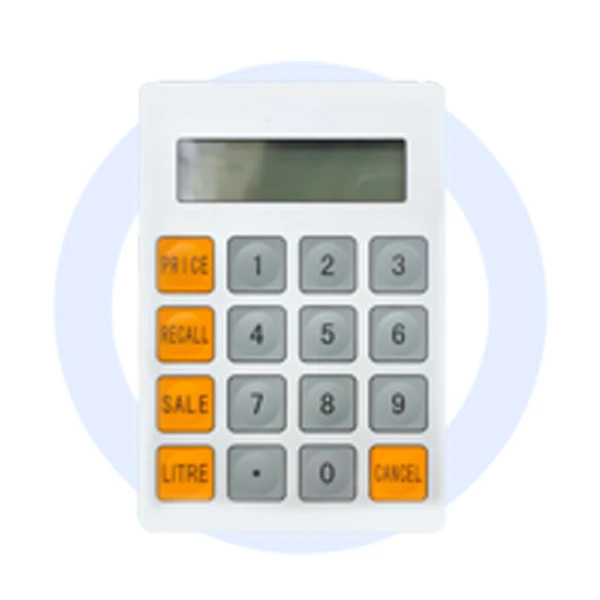

Keypad

You might also like

eGX1

EG3

Mini Mobile Fuel Station

EG5

FAQ

What applications is the Eaglestar EGM Mobile Fuel Pump suitable for?

The EGM is designed for remote and demanding environments, including mining sites, construction projects, fleet yards, agricultural operations, and emergency refueling applications. It helps deliver fuel directly to vehicles, generators, and heavy equipment without relying on fixed fuel stations.

Can the EGM Mobile Fuel Pump be installed on different vehicles?

Yes. The EGM features a compact truck-mounted design that can be installed on suitable service trucks, fuel vehicles, or mobile fueling platforms. The installation can be customized according to vehicle space, fuel tank configuration, and operation requirements.

How does the EGM help improve fuel management?

The EGM is equipped with a precision flow meter to provide accurate fuel measurement during dispensing. It helps operators monitor fuel usage, improve inventory control, reduce fuel waste, and maintain transparent fueling records.

Is the EGM safe for outdoor and harsh environments?

Yes. The EGM is designed for outdoor industrial applications with safety features such as emergency shut-off protection, anti-static components, and reliable fuel transfer control. Its durable structure makes it suitable for demanding working conditions such as mining areas and construction sites.
