Eaglestar EGM Mobile Fuel Pump – Bring the Fuel to the Truck
A fuel station usually means driving to it. The EGM turns that around. It is a mobile fuel pump for oil trucks and service vehicles - a compact dispenser that mounts on the truck and refueling equipment on site, drawing from the truck's own tank. Nothing has to be built for it, and nothing has to be driven anywhere to use it.
What it removes is not fuel but time. Send a loader or a genset back to a station and the round trip can swallow two hours, and everything waiting on that machine waits with it. With the pump on the truck, refueling happens where the work is - at a mine face, a construction yard, a generator set, or a site with no station within reach.
This unit is specifically designed for portability and can be mounted on a truck using a simple bracket, allowing the vehicle to retain its cargo bed and load-carrying capacity. The body features a cold-rolled, powder-coated finish, and the standard configuration includes a removable filter element that can be cleaned and reinserted, effectively preventing sand particles and moisture from entering the fuel and contaminating the flow meter.
The EGM fuel gas pump measures the volume of fuel dispensed from the nozzle using a volumetric flow meter, and the cumulative total is displayed on the screen. If equipped with the optional built-in printer, the device prints a receipt on the spot during refueling, allowing the data to be recorded before the truck departs. This is extremely convenient for fleets that need to bill customers or settle fuel costs for projects.
The risk of static electricity between vehicles and refueling equipment during the fueling process cannot be overlooked, and the EGM's design fully addresses this need. It utilizes explosion-proof electric pumps and explosion-proof electrical components, meeting the same safety standards as other types of Eaglestar fuel dispensers, but in a portable, compact design.
Trucks are designed to transport earth and materials, not to make frequent trips to gas stations. Installing the EGM on a truck enables on-site refueling and precise metering, ensuring the equipment remains highly efficient at all times.
Fits into 0.7m³ - mounts on any standard oil truck
3mm aluminum or stainless steel housing - 72-hour salt spray tested, zero rust
Operating range from -20°C to +50°C - starts reliably in extreme conditions
Digital flow meter with ±0.3% accuracy - 99.7 liters accounted per 100 liters
Flow rate of 50-70 L/min - fills 500L tank in 10 minutes
Multiple power options: 220V AC, 24V DC, or engine-driven (battery-independent)
Automatic nozzle shut-off at 97% - no spill, no backsplash, no waste
ATEX and ISO explosion-proof certification - safe for mines, chemical plants, and hazardous zones
Static grounding reel - removes ignition sources at fuel transfer point
LCD digital display - real‑time liter reading, no rounding or estimation
| Basic Configuration | Optional Features |
| Standard duty: 50 liter per min. | 7-7-5 LCD display (standard 6-6-4) |
| 4-piston flow meter | Heavy duty: 70 liter per min. |
| Italy PIUSI high quality DC 24V pump | 12V or 24V pump and motor Emergency button stop |
| 220V AC pump available | Customized logo painting on front pane |
| Without DC or AC pump, submersible type |
Two-Decade Expertise
Over 20 years of industry experience since 2005.

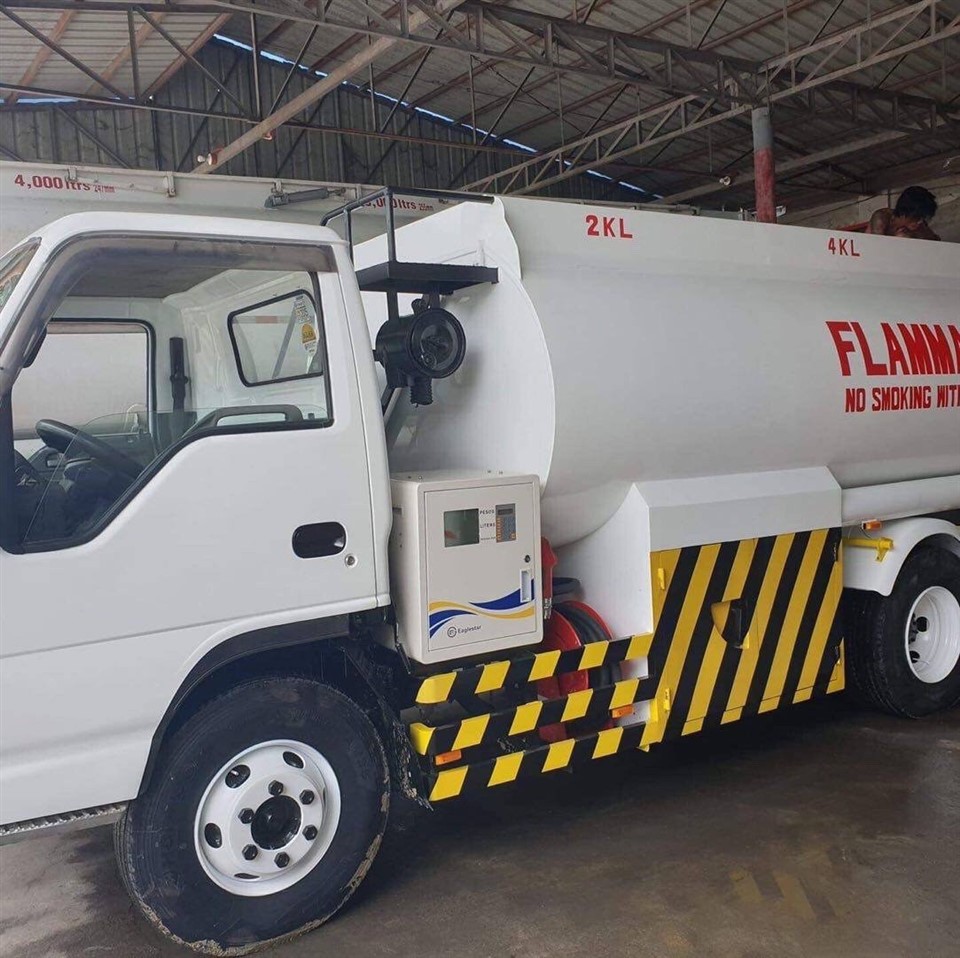

Eaglestar EGM Mobile Fuel Gas Pump with Truck
Durable, Mobile and user-Friendly Hose Reel Solution
Spacious Facility
A 4000 square meters modern production plant.
Efficient Delivery
Reliable and highly efficient delivery and packaging.
FAQ
Q: Can this pump handle diesel and gasoline? Which fuel types are supported?
A: Yes. The Eaglestar EGM Mobile Fuel Pump for Oil Truck supports diesel, gasoline, kerosene, and ethanol blends. You tell us your primary fuel at order, and we configure the seals, hoses, and meter accordingly. One unit handles one fuel type at a time.
Q: How accurate is the flow meter? Can customers trust the reading?
A: The digital flow meter holds ±0.3% accuracy. That means 99.7 liters measured for every 100 liters pumped. We have customers running mines and construction sites who rely on this for client billing - no more arguments about short measures.
Q: Does this require external power? Can it run off the truck battery?
A: You have three options: 220V AC (plug into shop or generator), 24V DC (direct from truck electrical system), or the engine-driven model (completely independent - no battery draw). The choice is yours.
Q: What safety certifications does the Eaglestar EGM Mobile Fuel Pump for Oil Truck carry? Is it safe for mining use?
A: ATEX and ISO certified for explosion-proof operation. Every electrical component is sealed, every connection spark-proof. You can run it inside a mine shaft or next to a chemical tank - no alarms, no ignition risk. The static grounding reel is mandatory and included.
Q: How much space does this take on my truck bed?
A: 0.7 cubic meters - about the size of a standard toolbox. It mounts once and stays there. You still have plenty of room for hoses, cones, and other gear.
Q: What happens if the hose leaks or the meter breaks in the field?
A: Every Eaglestar EGM Mobile Fuel Pump for Oil Truck comes with a 12-month warranty. We stock spare parts - flow meters, nozzles, hose assemblies - and ship globally. For urgent issues, our 24/7 support team walks you through troubleshooting. Many components are field-replaceable with basic tools.
