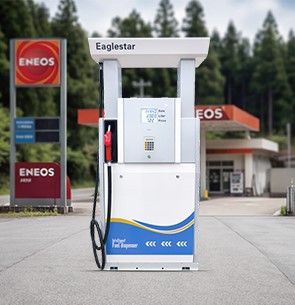

Let us walk you through a real moment at your fuel station. A customer pulls up. Pumps fuel. You want two things: they leave happy, and you do not give away a single liter for free.
The Eaglestar EG3 Flex-Nozzle Fuel Pump for Gas Station makes that happen every time. Inside this machine, a flow meter locks your accuracy at ±0.25 percent. That means for every 1,000 liters you sell, the meter shorts you by less than two and a half liters-or gives away less than that. You keep the margin you built your business on.
But accuracy alone does not clear the queue at 8 AM. You need speed. The Eaglestar EG3 Flex-Nozzle Fuel Pump for Gas Station pushes fuel at 50 liters per minute on standard mode. Switch to the high-flow setup, and you hit 70 liters per minute. At that rate, a 50-liter fill completes in under 45 seconds. Your daily vehicle count climbs without adding another pump island.
Now think about where this machine lives. Out in the open. Rain. Heat. Dust. Cold mornings. Eaglestar built the housing from composite materials that resist impact and corrosion. The internal frame is reinforced steel. We tested it for ambient temperatures from -20°C up to +50°C. Humidity up to 95 percent. It sits outside for years and starts every morning like the first day. You get a noise rating at or below 75 decibels-that is quieter than a vacuum cleaner. Your neighbors and your cashiers will thank you.

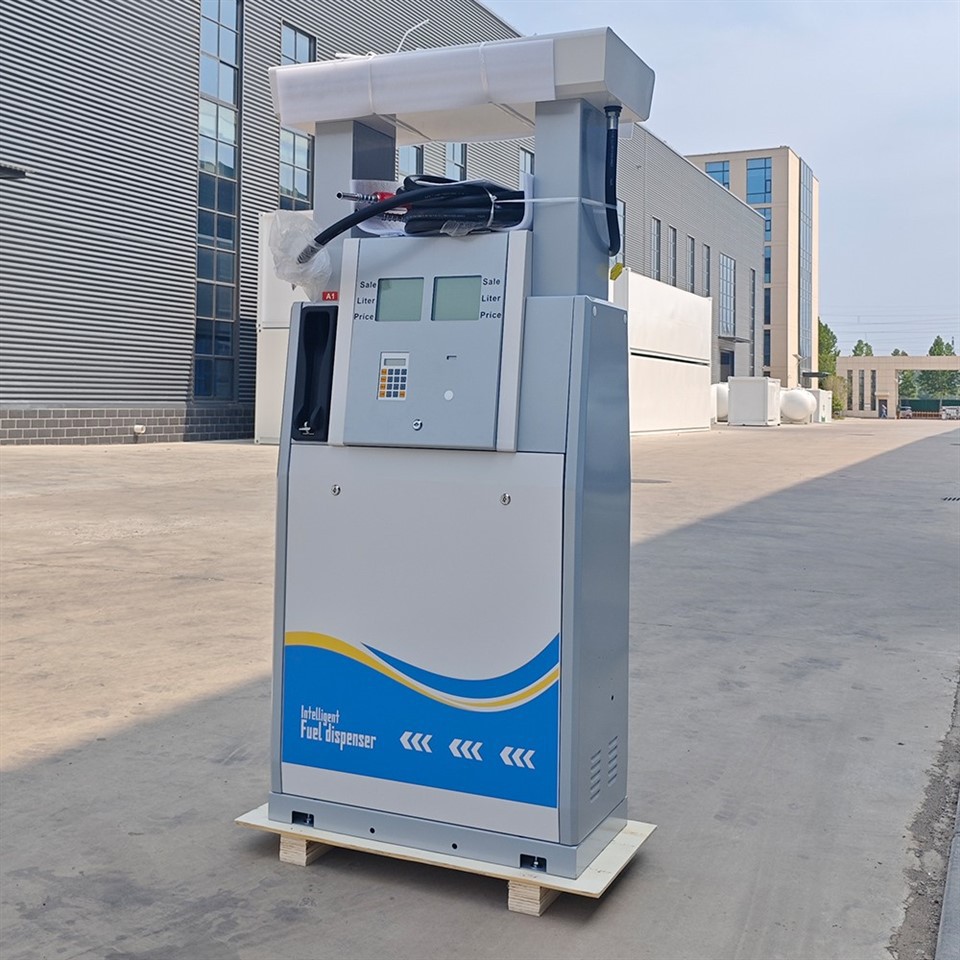

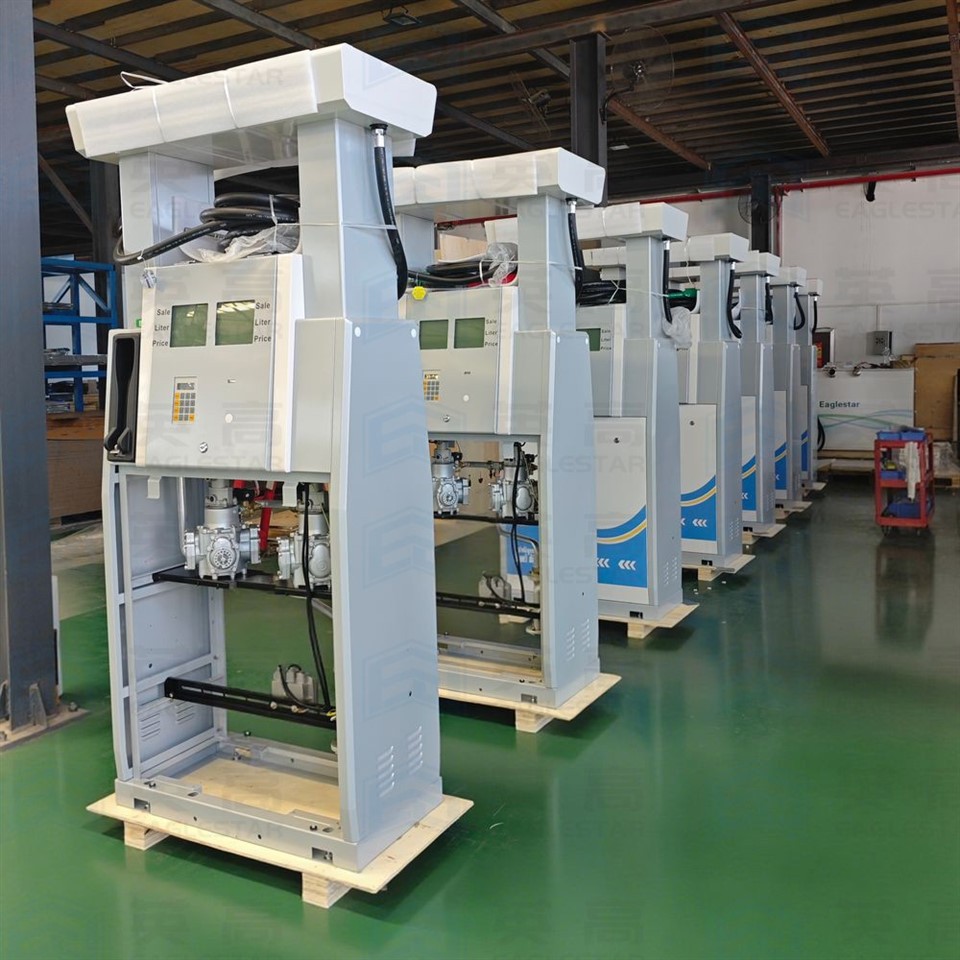

Here is where the Eaglestar EG3 Flex-Nozzle Fuel Pump for Gas Station pays off differently: configuration. You choose single nozzle or dual nozzles. If you go dual, you get two mainboards and two display panels. That means two customers fuel at the same time from the same unit. No waiting. No idle pump cycles. On the dual-nozzle model, we also give you two options. Eaglestar EG3-212 Flex-Nozzle Fuel Pump for Gas Station runs in interlock mode-one nozzle at a time, but you cut hardware cost by roughly 18 percent. Eaglestar EG3-222 Flex-Nozzle Fuel Pump for Gas Station runs both nozzles simultaneously and hits peak throughput for busy highway locations. You do not stop there. You can pick front hose or side hose. You can extend hose length, upgrade nozzle type, or integrate a payment system that fits your market.
Now sum it up. ±0.25 percent accuracy keeps your profit intact. 70 liters per minute keeps your queue short. A reinforced, weather-sealed housing keeps you out of the repair log. Flexible nozzles, dual boards, and customizable branding let you match the pump to your gas station-not the other way around. You install it once. You run it for years. And your customers? They just see a machine that works fast, measures fair, and lights up the night. That is all they need to know.
±0.25% metering accuracy – keeps revenue intact down to the liter
50 / 70 L/min flow rates – fills a tank in under 45 seconds; boosts daily throughput
-20°C to +50°C operating range + 95% humidity tolerance – runs in desert heat and freezing mornings without failure
Single or dual nozzle options | dual models carry two mainboards + two displays – two vehicles fuel at once from one unit
Interlock mode (EG3-212) cuts hardware cost by approx. 18% | Simultaneous mode (EG3-222) maximizes peak-hour throughput
Reinforced composite housing + steel internal frame – resists impact, corrosion, and daily wear
Highlight logo with 10,000+ hours LED on 40% less power – visible from 500 meters at night
| Environmental conditions | Technical specification |
|
Temperature : -25°C to +55°C Humidity : 5% to 95% |
Accuracy : ±0.25% Flow rate : 50l/min. 80liter/min for heavy duty Digits for sales : 7 digits Digits of volume : 7 digits Digits of unit price : 5 digits Power Supply : AC220V (-15% ~ +10%) 50/60Hz AC380V (-15% ~ +10%) 50/60Hz Mechanical totaliser : 7 digits Electronic totaliser : 10 digits |
Eaglestar that You can Trust
FAQ
Q: Where is Eaglestar based, and what is your global reach?
A: Eaglestar is centered in the Xingyang City Industrial Park, within Zhengzhou, Henan Province, China. This central location allows us to manage logistics efficiently, ensuring your orders move without unnecessary delay.
Your peers in over 120 countries are already using Eaglestar's equipment, a testament to the reliability Eaglestar has built across diverse markets...
Q: How do I know the ±0.25% accuracy is real and not just a sales number?
A: We do not guess. Every flow meter goes through calibration at our facility before it ships. The meter sits on a test bench, runs fuel, and we compare the reading against a certified reference. Error stays inside 0.25 percent. You also get OIML and ISO9001 certification on the unit. If the meter ever drifts, you recalibrate it on site through the interface. No need to send the unit back to us.
Q: Will the 70L/min flow rate work with my existing underground piping and pump?
A: The short answer is yes, but with one condition. The 70 liters per minute rate requires a 1-inch hose, nozzle, and solenoid valve. The standard configuration comes with a 1.5-inch setup. If you want high flow, you tell us at order time, and we swap the components before delivery. Your underground piping needs to support that rate as well-most standard station piping does. We can check your site layout before you commit.
Q: How does the Eaglestar EG3 Flex-Nozzle Fuel Pump for Gas Station hold up under continuous daily use in hot, dusty conditions?
A: We saw this exact question answered on the ground. UN peacekeeping missions deployed EG3 units in desert environments with temperatures swinging between extreme heat and freezing cold within the same operating theater. The units kept running. The reinforced steel frame and corrosion-resistant composite housing do the work. You are not buying a machine that needs to be babied. You are buying one that was built for daily punishment.
Q: What explosion-proof certifications does the EG3 carry?

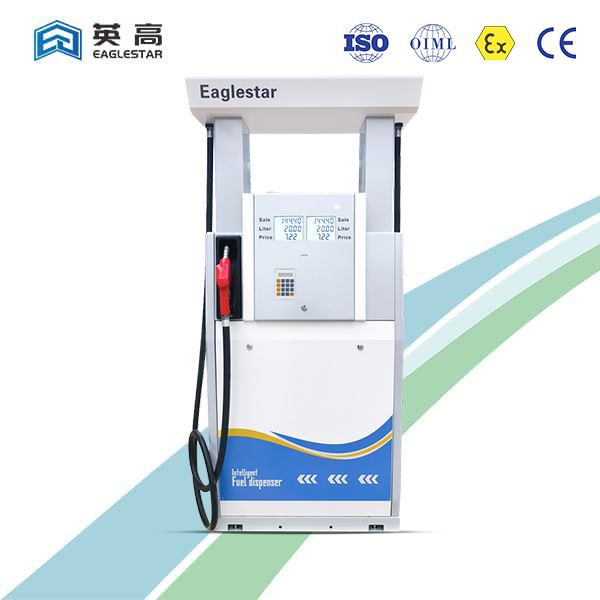

A: The Eaglestar EG3 Flex-Nozzle Fuel Pump for Gas Station carries ExdmbⅡAT3 GB explosion-proof classification. That means the enclosure contains any internal explosion without propagating to the outside environment. Components inside-valves, sensors, motor-are all explosion-proof rated. You are not wiring together generic parts and hoping for the best. You are buying a system that was certified as a complete unit.
Q: Frustrated with unresponsive suppliers?
A: Get direct access to our management. Your concerns can be directed straight to Mr. Jason Wu, our principal. Request a priority quote for your high-value project.
