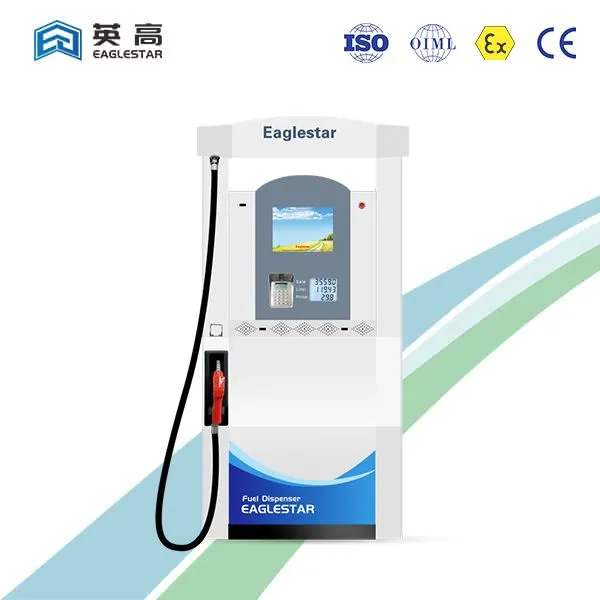

Eaglestar EG5-H Smart Petrol Garages Pump for Gas Station
Cars backed up to the street. Drivers leaning out, trying to see which lane moves faster. You don't need another island. You need the fuel pump you already have to work harder. The Eaglestar EG5-H Smart Petrol Garages Pump runs both sides simultaneously. Two vehicles fill up at the same time from one unit. That alone cuts wait time by more than half. We put large multimedia touchscreens on both sides-so each driver sees their own price, their own liters, their own total. No one waits for the other side to finish. Payment options include cash, fuel cards, and digital wallets. Google Pay works. QR codes work. Local payment systems work. Your customers pick what they already use. For fleet managers, the Eaglestar EG5-H Smart Petrol Garages Pump communicates directly with your fuel management software. Every transaction lands in your system in real time.
Let's picture your busiest hour. Cars backed up to the street. Drivers leaning out, trying to see which lane moves faster. You don't need another island. You need the pump you already have to work harder. The Eaglestar EG5-H Smart Petrol Garages Pump runs both sides simultaneously. Two vehicles fill up at the same time from one unit. That alone cuts wait time by more than half. We put large multimedia touchscreens on both sides-so each driver sees their own price, their own liters, their own total. No one waits for the other side to finish. Payment options include cash, fuel cards, and digital wallets. Google Pay works. QR codes work. Local payment systems work. Your customers pick what they already use. For fleet managers, the Eaglestar EG5-H Smart Petrol Garages Pump communicates directly with your fuel management software. Every transaction lands in your system in real time.
Two-side simultaneous fueling -- Both sides of the unit operate independently at the same time
Multimedia touchscreens on both sides -- Large high-brightness LED displays; legible under direct sunlight
Multi-payment acceptance -- Cash, fuel cards, Google Pay, QR codes, local payment systems
Fleet software integration -- Direct communication with fuel management systems; real-time transaction logging
Metering accuracy -- ±0.25% across all transactions
Flow consistency -- Gear pump + four-piston flow meter keeps pressure steady across all hoses
Operating range -- -20°C to +50°C; fully sealed against rain and dust
Best-selling model -- Eaglestar most popular fuel dispenser model
| Technical Specifications | |
| Input power supply | AC 220V (-15% + 10%) or 380V |
| Communication Mode | / |
| Frequency | (50/60±1) Hz |
| Range of flow rate | (5-50 or 7-70) L/min |
| Minimum measured | 5 or 7 L/min |
| Accuracy | ±0.25% |
| Nosie level | ≤75dB |
| Ambient temperature | -20℃ - +50℃ |
| Relative humidity | ≤95% |
| Pump inlet vacuum | ≥54kPa |
| Explosion proof class | Exdmb II AT3 GB |
| Digits of display | Sale: 7 digits |
| Liter: 7 digits | |
| Range of electronic totalizer | Sale: 0.00-99999999.99 |
| Liter: 0.00-99999999.99 | |
| Digits of Unit Price | 5 digits |
| Range of electromagnetic totalizer | (0-99999999) |
| Model | Pump | Nozzle Oil PRoducts | Dimension(mm) |
| Eaglestar EG5-222 V or S or G |
G: Gear type S: Submersible type V: Vane pump |
2 hose, 2 product, 2 displays |
Package: 1240*550*2100 |
| Eaglestar EG5-424V or S or G | 4 hose, 2 product, 4 displays | Package: 1310*630*2360 | |
| Eaglestar EG5-636 V or S or G | 6 hose, 3 product, 6 displays | Package: 1550*800*2470 | |
| Eaglestar EG5-634 V or S or G | 6 hose, 3 product, 4 displays | ||
| Eaglestar EG5-848 V or S or G | 8 hose, 4 product, 8 displays |
Package: 1750*950*2680 |
