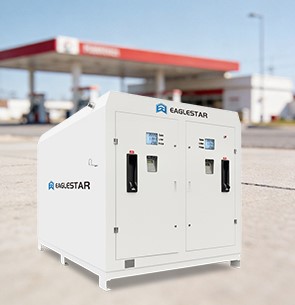

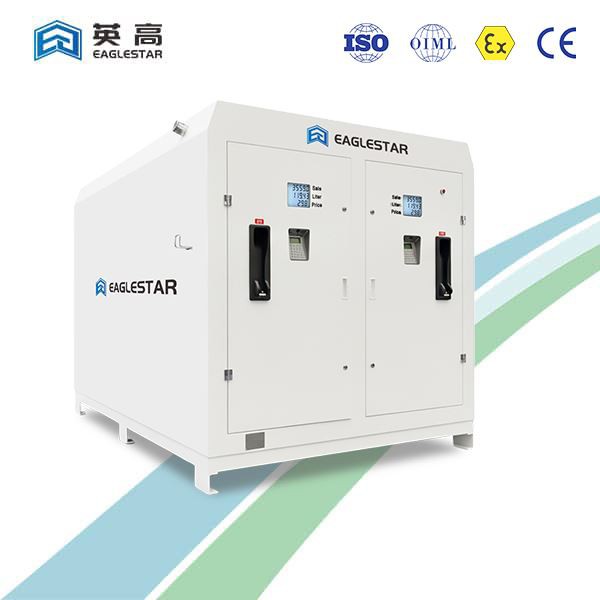

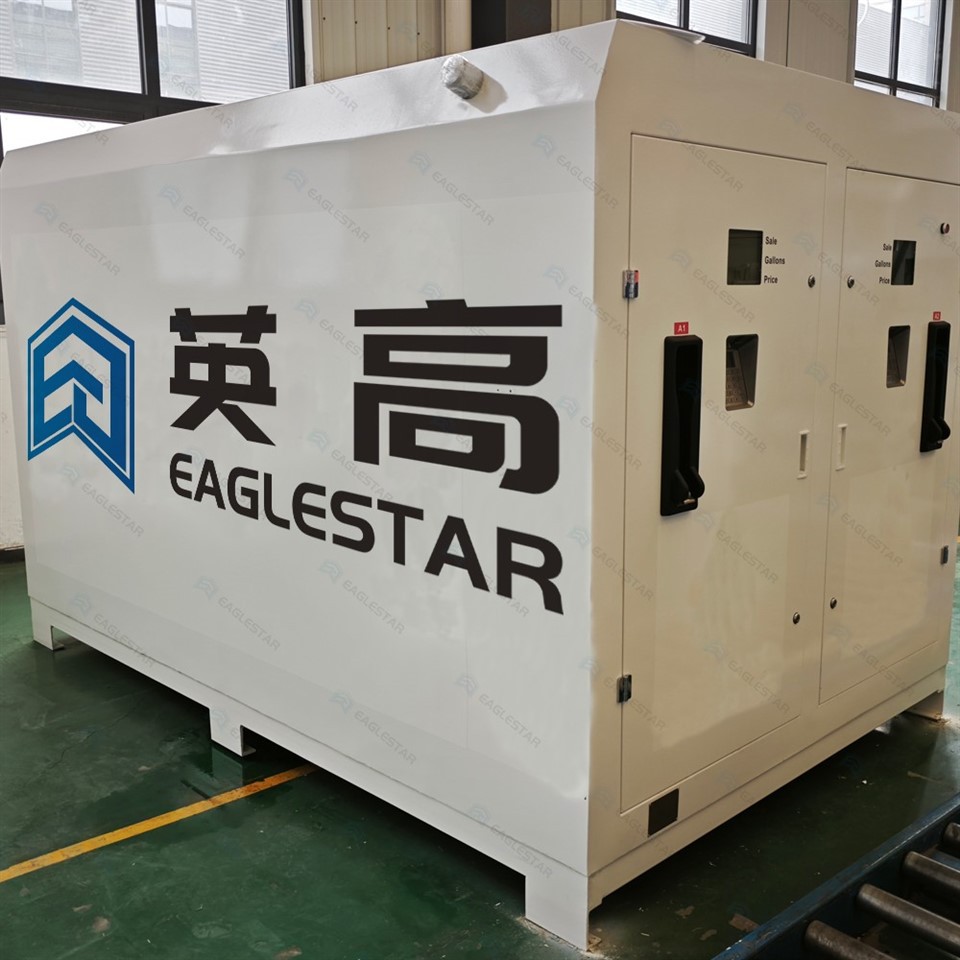

Eaglestar Two-Product Mini Gas Station - Compact Dual-Product Fueling Solution
Picture this. You run a construction crew fifty kilometers from the nearest fuel pump. Every morning, a truck drives two hours round trip just to fill up the excavators. That is two hours of lost work, plus the fuel the truck burns to fetch more fuel.
We designed the Eaglestar Mini Fuel Station to stop that waste. This is a skid-mounted, all-in-one unit that puts a complete fueling point right where you need it. The double-wall tank holds its contents with zero leakage to the ground. If the inner wall ever fails, the outer wall contains every drop. Our interstitial monitoring system picks up that change and alerts you within seconds. You do not dig foundations. You do not pour concrete. You do not wait for permits for months. A forklift lifts the unit off a flatbed truck. You set it down on level ground. You connect power. You start pumping fuel. That is the entire install process.
The Eaglestar Mini Fuel Station comes in multiple configurations. You can split it into two compartments to carry both gasoline and diesel on the same skid. That means one machine fuels your entire fleet-petrol cars on one side, diesel trucks on the other. The integrated fuel dispenser delivers at flow rates between 7 and 70 liters per minute. A small tractor takes 7 liters a minute.A heavy mining truck gets the full 70. You set the rate that fits your equipment.
The Eaglestar Mini Fuel Station works across ambient temperatures from -20°C up to +50°C. The electronics stay sealed. Rain? Snow? Dust storms? The housing keeps everything running. At night, or when no one is around, the Automatic Tank Gauge watches the tank for you. It measures fuel level down to 0.1 millimeter resolution. It tracks temperature inside the tank to 0.1 degree Celsius. It detects free water sitting at the bottom. It knows the difference between 95 percent full and 100 percent full-and it alarms before an overflow happens.
All of this data displays on a backlit LCD panel at the Eaglestar Mini Fuel Station. It meets EPA secondary containment requirements. Every weld on the tank uses automatic welding technology. The double-wall construction gives you 5 to 10 millimeters of separation between inner and outer layers.
Eaglestar has seen these Mini Fuel Stations deployed on mining sites, military bases, disaster relief zones, and rural fuel stations. They arrive on a truck. They fuel equipment. They move to the next site when the job is done.
Double-wall tank with interstitial monitoring – contains leaks, alerts with detection, zero ground contamination
7 to 70 L/min adjustable flow rate – fuels a tractor at low end, a mining truck at high end, one machine covers your entire fleet
-20°C to +50°C ambient operation with ≤95% humidity tolerance – runs in desert heat, freezing mornings, and wet seasons without failure
Two-compartment tank option – carries gasoline and diesel on the same skid, no second machine
ATG with 0.1mm level resolution and 0.1°C temp accuracy – measures fuel volume, ullage space, temperature, free water, alarms set at 95% and 10%
Skid-mounted, forklift-deployed, no foundations required – from flatbed to fueling in less than one day
| Volume | Dimension | Weight | 20ft | 40ft |
| 1000L/264GAL |
1650*1116*1120MM |
315kg | 12 | 28 |
| 2000L/528GAL | 2100*1250*1300MM | 439kg | 4 | 10 or 8 |
| 3000L/792GAL | 2100*1470*1630MM | 540kg | 4 | 8 |
| 4000L/1056GAL | 2135*1875*1670MM | 700kg | 3 | 5 |
| 5000L/1350GAL | 2600*1965*1675MM | 916kg | 2 | 4 |
| 6000L/1584GAL | 3010*1960*1895MM | 1865kg | 1 | 3 |
Fueling the World
Eaglestar that You can Trust
Q: Where is Eaglestar based, and what is your global reach?
A: Eaglestar is located in the Xingyang City Industrial Park, within Zhengzhou, Henan Province, China. This central location allows us to manage lgistics efficently, ensuring your orders move without unnecessary delay...
Q: How long does it take from delivery to the first gallon of fuel coming out of the nozzle?
A: If the ground is level and power is nearby, you are fueling in under four hours. A forklift offloads the skid. You set it in place. You connect the main power. The built-in dispenser is already wired and sealed from the factory. No plumbing. No concrete. No waiting for an inspector to sign off on underground tanks. That is the difference between a mobile station and a permanent one.
Q: What happens if the inner tank develops a crack?
A: The double-wall design means any leak from the inner wall fills the interstitial space between the walls. That space connects directly to an electronic monitoring system. The sensor registers liquid. The alarm triggers. You receive an alert. The fuel stays inside the second wall. No soil contamination. No regulatory fines. No surprise cleanup bill.
Q: Can I use this station to fuel both gasoline vehicles and diesel equipment without buying two units?
A: Yes, if you order the two-compartment configuration. The tank splits into separate sections-one for gasoline, one for diesel. Each compartment connects to its own metering and dispensing line. One skid. One power connection. One monitoring system. Two fuels. You fuel your entire operation from a single machine.
Q: Frustrated with unresponsive suppliers?
A: Get direct access to our management. Your concerns can be directed straight to Mr. JAson Wu, our principal. Request a priority quote for your high-value project.
Specify your site conditions and fuel requirements. We will match you with the right tank configuration and power setup. Contact our technical team to initiate a site assessment.
