Liquefied Petroleum Gas (LPG) has become one of the most popular and eco-friendly fuels for vehicles, industrial equipment, and residential use. As the demand for LPG continues to rise, understanding the working principle of an LPG station is essential for both operators and customers. In this blog, we'll walk you through how an LPG refueling station functions and the key components that ensure a smooth, safe, and efficient fueling process.
- LPG Storage and Pumping System

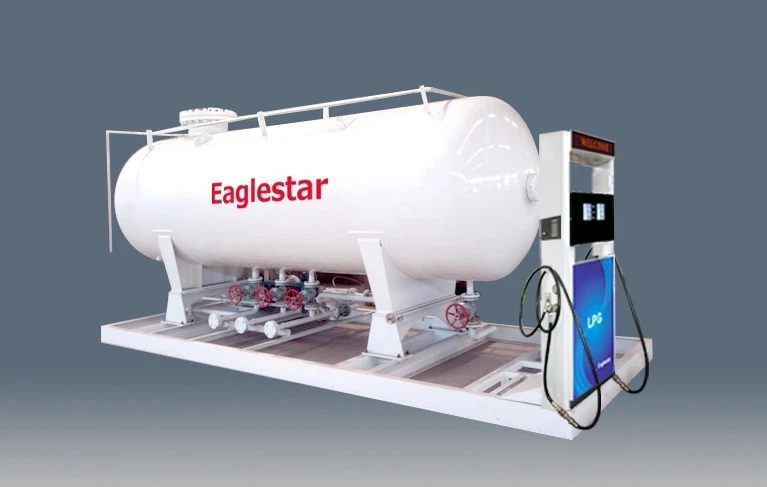

LPG in a station is stored in large storage tanks under high pressure to keep the gas in liquid form. When a vehicle pulls up to the LPG dispenser, the fueling process begins with the pump. The LPG is pumped from the storage tank through a series of pipes to the LPG dispenser, where it undergoes a series of separation and measurement steps.
- Gas-Liquid Separation
LPG, stored under pressure, is in a liquid state in the storage tank. However, when the liquid is pumped toward the dispenser, it may contain some vapor (gas). This is where the gas-liquid separator in the LPG dispenser plays a crucial role. The separator effectively removes the gas from the liquid LPG, ensuring only liquid fuel is delivered to the vehicle's tank. The separated gas is then returned to the gas storage tank, maintaining the correct pressure and composition of the stored LPG.
- Accurate Measurement with Flow Meter
After the liquid LPG is separated, it passes through the flow meter, which measures the exact amount of LPG being dispensed. LPG dispensers are equipped with highly accurate flow meters, ensuring that each refueling is measured precisely. The flow meter utilizes a positive displacement mechanism to accurately calculate the volume of LPG dispensed in real-time. This technology minimizes errors, providing both operators and customers with reliable and accurate data.
- Measurement Calculation and Display
The dispenser uses a microcomputer controller to automatically regulate and control the entire fueling process. The controller processes data based on the signals received from the flow meter and the temperature sensor. Since the volume of LPG can vary with temperature, the microcomputer compensates for temperature changes to ensure accurate volume measurements. The system calculates the LPG's volume or weight (depending on the chosen measurement mode) and displays it clearly on the LCD screen.
The controller also allows for the recall of previous sale data, which can be particularly useful for record-keeping and invoicing purposes. Users can easily review accumulated sales data, enhancing the operational transparency of the station.
- Switching Between Volume and Weight Measurements
One of the advanced features of modern LPG dispensers is the ability to switch between volume (liter) and weight (kilograms) measurement. This is particularly beneficial for regions where LPG is sold by weight rather than volume. The switch can be easily made using the keyboard on the dispenser, and the conversion is simple:
Weight = Volume × Density.
This flexibility ensures that LPG dispensers can cater to a wide range of regulatory requirements and customer preferences, providing both convenience and accuracy.
- Dispensing to the Vehicle
Once the fuel is measured, it travels through the hose, equipped with a breakaway coupling to ensure safety. In the event of an unexpected movement or damage to the hose, the breakaway coupling will automatically disconnect, preventing fuel spillage or leaks. The liquid LPG finally reaches the LPG nozzle, which is securely connected to the vehicle's gas cylinder, completing the refueling process.
- Safety Features and Final Checks
Throughout the entire process, safety is a top priority. LPG dispensers are designed with various safety mechanisms, such as pressure relief valves, automatic shutoff systems, and anti-leakage technologies. These features ensure the LPG is delivered without risk to the environment or personnel, protecting both the fueling station and the customer.
Conclusion
The working principle of an LPG station involves a series of interconnected steps designed to provide a safe, efficient, and accurate fueling experience. From the separation of gas and liquid to precise measurement and flexible weighing options, modern LPG dispensers ensure that fueling is both reliable and convenient. By leveraging advanced technology like microcomputers, flow meters, and temperature sensors, LPG stations are able to meet the demands of a fast-evolving industry, helping customers save time and money while maintaining the highest standards of safety and performance.
Understanding how an LPG station works not only provides valuable insight into the fueling process but also empowers station operators to deliver the best service possible. Whether you're fueling your vehicle or operating a station, knowing the mechanics behind LPG dispensing helps everyone work smarter, safer, and more efficiently.
