When you run a gas station, what keeps you awake at night? Hidden leaks. One small crack in a single-wall pipe, and fuel seeps into the soil for months before you notice it.

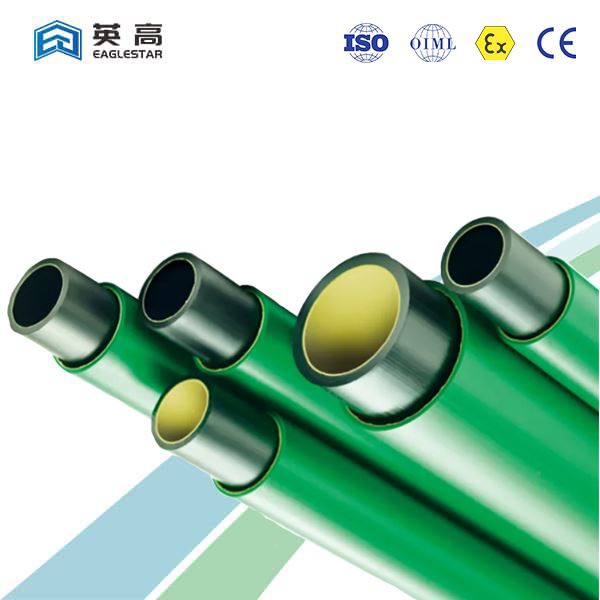

The Eaglestar HDPE Double-Wall Pipeline eliminates that worry altogether. We built it with two independent walls: an inner pipe that carries the fuel, and an outer pipe that wraps around it completely. Between them sits a 6mm monitoring space. If the inner pipe ever fails, the leaked fuel fills that gap instead of the ground around it. Our monitoring system detects that change and sends an alert within 90 seconds. It pinpoints the leak location to within 1 meter-so you don't waste time digging up half the station. You bury this pipe up to 2 meters deep. It shrugs off over 5 tons of surface pressure from trucks driving over it daily. Every single weld we make undergoes 100% pressure testing before it leaves our facility.
The Eaglestar HDPE Pipeline operates in temperatures from -40°C to 60°C without cracking or warping. When you install it, you dig one trench, not two. The pipe weighs one-eighth what steel pipe weighs, so your crew moves faster and your shipping costs drop. You never pay for cathodic protection or sacrificial anodes. This pipe handles over 200 industrial chemicals, from sulfuric acid to ethanol-blended gasoline. It resists corrosion across the full pH range of 0 to 14. We've seen these Eaglestar HDPE Pipelines run for 50 years and still hold pressure like the day they were installed. Your leak risk drops to less than 10% of the industry average. That is not a marketing promise. That is math.
90-second leak after with 1-meter location accuracy -- catches failures before pollutions reach the environment.
6mm monitored interstitial space – continuous surveillance across the full pipe length
6mm monitored interstitial space – continuous surveillance across the full pipe length
100% pressure-tested at every single weld – zero hidden weak points in the Eaglestar HDPE Pipeline
-40°C to 60°C operational range – no brittle cracking in winter, no warping in summer
200+ industrial chemicals resistance – tolerates ethanol, biodiesel, sulfuric acid across whole pH 0–14 range
50+ year service life – one installation, no replacement during your ownership
Leak risk below 10% of industry average – quantifiable safety gain, not just a claim
Manhole sump
Tees
Dispenser sump
Welding socket
90°Elbow
Eaglestar that You can Trust
FAQ
Q: Where is Eaglestar based, and what is your global reach?
A: Eaglestar is located in the Xingyang City Industrial Park, within Zhengzhou, Henan Province, China. This central location allows us to manage logistics efficiently, ensuring your orders move without unnecessary delay.
Your peers in over 120 countries are already using Eaglestar's equipment, a testament to the reliability Eaglestar has built across diverse markets...
Q: Do I need special training to install this Eaglestar HDPE Pipeline correctly?
A: We provide installer training programs. The techniques are different from steel pipe welding but easier to learn. Most crews master electrofusion welding within one day of supervised practice. The tools are portable. The welds are repeatable. We do not leave you to figure it out alone.
Q: How does the price compare to traditional steel piping?
A: The upfront material cost is competitive with steel. The difference comes after installation. You spend less on shipping because the pipe weighs less. You spend less on labor because your crew finishes faster. You spend nothing on cathodic protection. You spend nothing on replacement for 50 years. Add those numbers up. The lower total cost is not hidden. It is right there on the ledger.
Q: Can I use this pipe to retrofit my existing metal piping, or do I have to dig everything up?
A: Retrofit is exactly what this pipe was made for. You can pull the new HDPE pipe through existing casings using horizontal directional drilling. Trenchless installation means you do not tear up your entire forecourt. You replace the old pipes without closing the station for weeks. One weekend of work. Open for business on Monday.
Q: What certifications does this pipe carry?
A: Eaglestar HDPE Pipeline complies with UL 971, NFPA 30, and API 1615 for fuel piping systems. It meets EPA secondary containment standards. It is approved for direct burial and trenchless installation. Every regulatory box you need to check? This pipe already checked it.
Q: Frustrated with unresponsive suppliers?
A: Get direct access to our management. Your concerns can be directed straight to Mr. Jason Wu, our principal. Request a priority quote for your high-value project.
