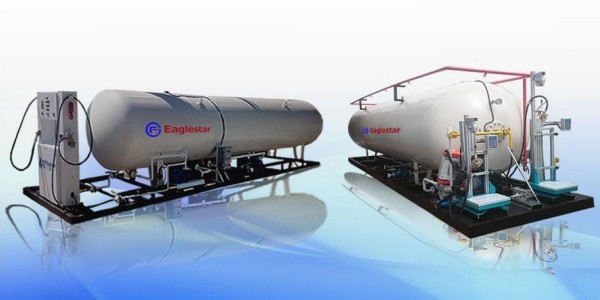

Eaglestar LPG Gas Station is a high-performance solution designed to meet the fueling needs of modern businesses while ensuring operational safety and long-term value. Combining innovative engineering with practical features, our LPG stations are the ideal choice for companies seeking cost-effective and reliable fuel dispensing systems.
Advantages and Features
Low Investment, Quick Return
The lpg station requires minimal upfront costs and is designed for a fast return on investment. Its modular design reduces the need for extensive infrastructure, making it an economical option for new and expanding businesses.
Durable Design for Long Life
Built to last, the station boasts a service life of 20 years or more, thanks to high-quality materials and precision engineering. This durability ensures long-term operational efficiency and reduces replacement costs.
Customizable and Flexible Solutions
Each Eaglestar LPG filling station can be tailored to your specific needs. From tank capacities to pump configurations and branding options, our solutions are designed to adapt to the unique requirements of your business.
Maximum Safety and Simple Layout
With a straightforward design and a focus on safety, the station includes features such as an emergency stop system, tank level gauge, and advanced leak detection systems. These safety measures ensure smooth and secure operations even in high-demand environments.
Efficient and Easy Operation
- High-Performance Pumps
The station offers multiple pump options, ensuring consistent and efficient LPG transfer for both unloading and dispensing operations.
- Reliable Electrical Control Panel
Equipped with a state-of-the-art electrical control panel, the system provides precise control and monitoring for seamless operation.
- Low Power Consumption
Designed with energy efficiency in mind, the skid-mounted station minimizes power usage without compromising performance, reducing operational costs over time.
-
Quick Installation and Setup
Eaglestar gas LPG stations are pre-assembled and require minimal installation time, enabling businesses to start operations quickly. The modular design simplifies logistics and setup, making it ideal for remote or urban locations.
Conclusion
Eaglestar LPG gas station combines reliability, efficiency, and safety in one compact system. With its long service life, customizable features, and easy operation, it offers an outstanding return on investment for businesses of all sizes. Choose Eaglestar for a smarter, safer, and more efficient fueling solution.
Specifications
|
Direction of Rotation |
Anti-clockwise facing the end of pump drive shaft |
|
Max. Pressure: |
40 Bars at 120℃ |
|
Speed |
1450 rpm |
|
Power |
5.5KW 380V 50HZ |
|
Ambient temperature |
20℃~+60℃ |
|
Rated flow rate： |
5m³/h |
|
Connection Flanges |
DIN 2501, PN 40 As per DIN 2501, PN 40 |
|
Bearings |
Sleeve bearing at the pump end, ball bearing at the drives end |
|
Lubrication |
Plain bearing at the pump end lubricated by the pumped product, ball bearing at the drive end lubricated for life. |
| Tank capacity (m³): | 5,10,15,20,30 |
| Density of medium: | 560 kg/m³ |
| Desigh using life： | 15 years |
Components
LPG
For LPG machine video, please click here. And this is LPG dispenser components showing.

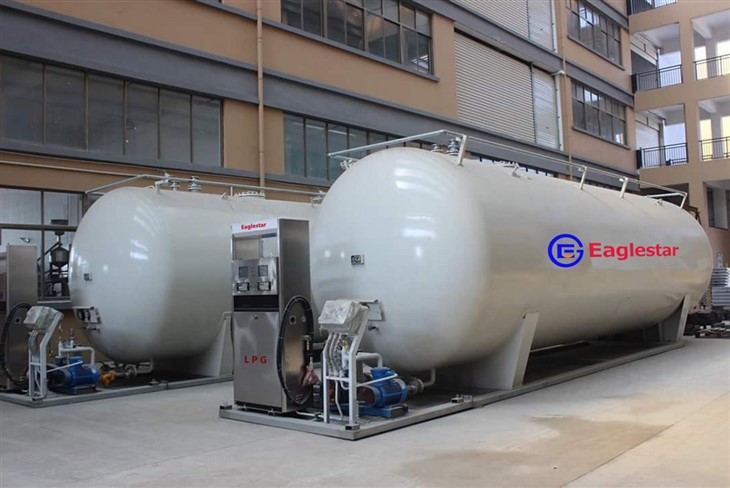

Factory Showing
Customer visiting
Sincerely welcome our customers to visit our factory in China. Confidence comes from high quality products and best service.
Delivery and package
To guarantee undamaged delivery by sea, we package our fuel dispenser pump in robust, insect-resistant wooden crates and add foam rubber cushions.
Customer Cases
Our extensive export of fuel pump machine has led to lasting cooperation with a wide range of international companies, strengthening our global presence.
Certifications
With relevant production qualifications, Eaglestar gas station hold certifications for explosion-proof safety, measuring instruments, and ISO quality, UL, etc. ensuring high standards of quality.
9001-quality management
14001environmental management
CE certificate for gas station
explosion proof certification
OIML for measurement instruments
UL certificate
FAQ
Q: What is your terms of the delivery?
Q: Will LPG systems work properly in extreme weather conditions?
Q: What is the noise level of the Eaglestar LPG system?
Q: How accurate is the LPG flow meter?
Q: Do you have foreign local office?
A: Yes. We have local office in some countries, Nigeria, Ghana, Tanzania, Myanmar, Philippines. Contact us and get in touch
Q: Are you manufacturer or trading company ?
A: We are professional manufacturer for over 20 years.
Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, It takes about 5~10 work days if goods are in stock. Or 15~20 work days if the goods are not in stock.
Q: How long is the warranty?
A: According to international standards, products in standard operation is 1 year(except wearable parts &seals)
