specification
|
Noise Level |
≤75dB |
|||
|
Ambient temperature |
-20℃ - +50℃ |
|||
|
Relative humidity |
≤95% |
|||
|
Pump inlet vacuum |
≥54kPa |
|||
|
Explosion proof class |
Exdmb II AT3 GB |
|
Input power supply |
AC 220V (-15% +10%) or 380V |
|||
|
Communication Mode |
/ |
|||
|
Range of flow rate |
(5-50 or 7-70) L/min |
|||
|
Minimum measured |
5 or 7 L/min |
|||
|
Accuracy |
±0.25% |
|
Digits of Display |
Sale: 7digits |
|||
|
Liter: 7digits |
||||
|
Range of electronic totalizer |
Sale: 0.00-99999999.99 |
|||
|
Liter: 0.00-99999999.99 |
||||
|
Digits of Unit Price |
5 digits |
|
Range of electromagnetic totalizer |
(0-99999999) |
|||
|
Fuel Tank Capacity |
10000-60000L |
model
| Model | Total volum (Liters) | Container inner size (mm) | Total weight (ton) |
| 40ft | 30000 | 12029*2350*2390 | 6.95 |
| 36000 | 12029*2350*2390 | 7.25 | |
| 40000 | 12029*2350*2390 | 7.75 | |
| 50000 | 12029*2350*2390 | 8.39 | |
| 55000 | 12029*2350*2390 |
9.35 |
Product Overview
Have you noticed that running a gas station these days is no longer just about selling fuel? Gas station operators are facing increasing pressure to cut costs, speed up transactions, mitigate the risk of customers driving off without paying, and accurately record every transaction. At the same time, customers expect a faster, more modern fueling experience. If your gas station still relies on outdated business practices-such as cash transactions and manual account reconciliation-you're not only wasting time and money but also eroding customer trust.
Now start a smarter way to fuel - Eaglestar large skid-mounted fuel station with smart payment was built to solve this problem.
In addition to its traditional advantages-such as ease of deployment, flexibility, safety, reliability, and durability in harsh environments-it now offers a new mobile payment solution.
Eaglestar container fuel gas station supports a variety of mainstream payment methods, including QR codes and card payments, and can also be customized to include local payment methods based on customer needs.Truly achieved contactless, cashless and virtually unmanned operations.
At the same time, every transaction is uploaded to the back-end system in real time, allowing station owners and managers to monitor fuel sales and check the status of the petrol station at any time via the back-end system.
electronic part
Diesel generator
Unloading fast couplings
Ball valve for unloading
Manhole cover
Loading or unloading
Probe
Console
Breath valve
Static ground alarm system
Ex junction box
Explosion-proof lamp
Double tank leak detecto

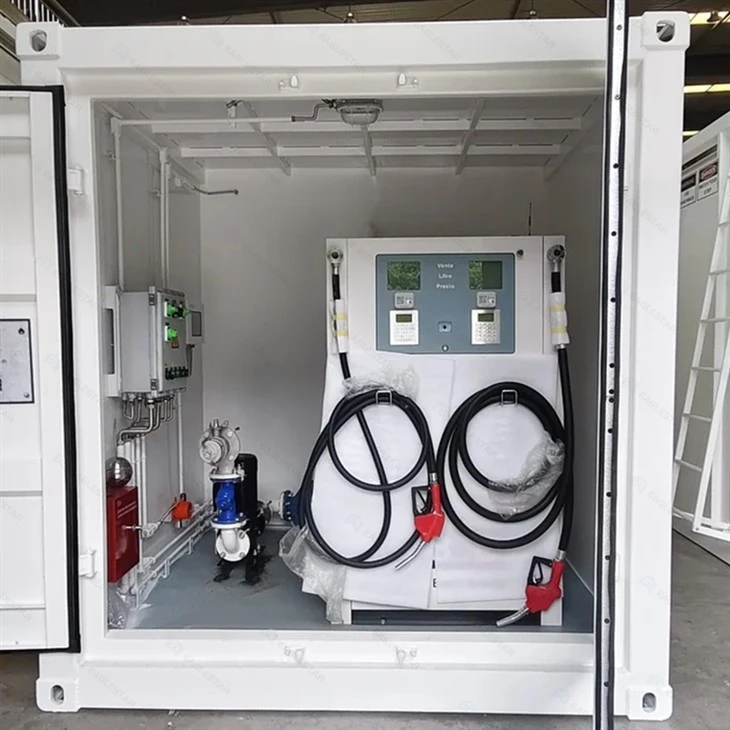

container fuel gas station
You Might Also Like
our certification
ISO 9001
ISO 14001
ISO 45001
CE
CNEX
OIML
fAQ
How much can mobile payments help gas stations save on labor costs?
+
-
By removing the need for manual cashiering, bookkeeping, and reconciliation, mobile payment lets a station handle the same volume of business with far fewer staff - cutting labor costs while sharply reducing the errors and disputes that come with manual handling.
What payment methods does Eaglestar container fuel station support?
+
-
Eaglestar fuel station supports a range of mainstream payment methods - including QR codes, mobile banking, and e-wallets - and operators can configure which options are enabled based on local market needs and customer preferences.
Does the system still work if the internet connection is unstable or goes down?
+
-
Yes. The unit is designed with offline transaction capability - if the network drops temporarily, payments can still be processed locally and will automatically sync with the backend once connectivity is restored.
Will it function properly in areas without a stable electricity grid?
+
-

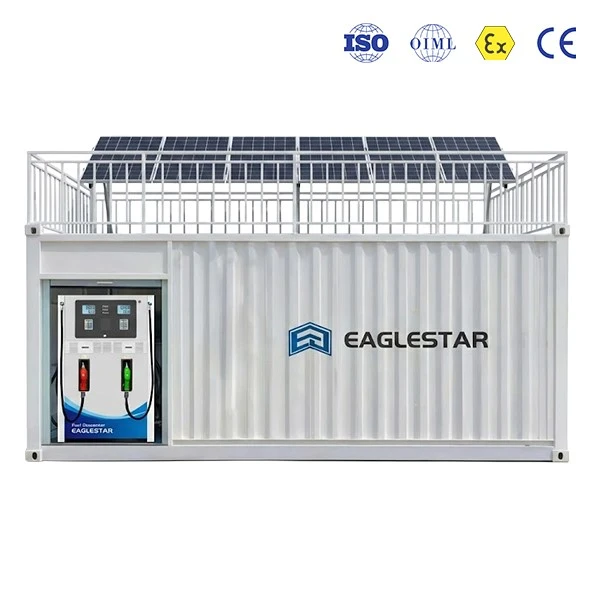

Yes, Eaglestar offers a solar container fuel station, which integrates solar power, energy storage batteries and a skid-mounted refuelling unit to address the issue of unstable power supply.
