Eaglestar Two-Product Mini Gas Station - Compact Dual-Product Fueling Solution
For a mining superintendent managing a fleet of heavy-duty haul trucks twenty kilometers from the nearest paved road, every hour lost to refueling translates into thousands of dollars in idle equipment cost. The same problem haunts a construction project manager whose excavators and bulldozers consume two different fuel types-diesel for the heavy machinery and gasoline for the support vehicles. Shuttling tanker trucks back and forth is expensive. Building a permanent fuel station makes no sense for a project that will relocate in six months. This is where the Eaglestar Two-Product Mini Gas Station enters the picture.

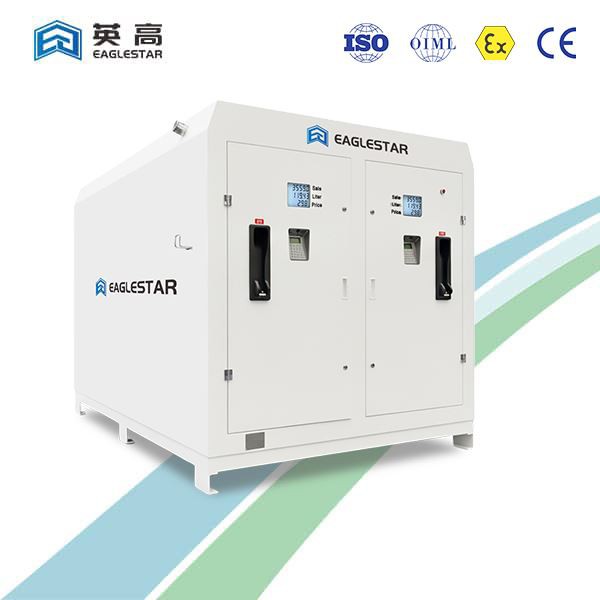

This Eaglestar Two-Product Mini Gas Station is an all-in-one, skid-mounted fueling system. The storage tank and the fuel dispenser have been integrated onto a single structural frame, which eliminates the need for separate foundation work or on-site assembly. A multi-compartment tank configuration is employed here, allowing two distinct fuel products-such as diesel and gasoline-to be stored within the same footprint. Each compartment operates independently, with its own dedicated dispensing line and nozzle. The entire assembly arrives at your site pre-assembled and pre-tested. Forklift the skid off the delivery truck, position it on reasonably level ground, connect the power supply, and the system is ready to dispense.
Several engineering choices contribute to the system's operational reliability. The fuel dispenser operates with a flow rate ranging from 5 to 50 liters per minute, delivering a metering accuracy of ±0.30 percent. Power can be supplied through either AC 220V or DC 24V, giving you flexibility for off-grid installations where a generator or vehicle battery may serve as the power source. The storage tank capacities span from 1,000 to 6,000 liters, with the 6,000-liter option measuring 3,010 by 1,960 by 1,895 millimeters and weighing approximately 1,865 kilograms when empty. An explosion-proof rating of ExdmbⅡAT3 GB is applied to the electrical components, and the system is designed to function within ambient temperatures ranging from minus 20 to plus 55 degrees Celsius. Noise emission is controlled to no more than 75 decibels during normal operation.
Rural fueling stations in low-infrastructure areas represent one natural fit. Construction and mining sites that require temporary fuel supply benefit directly from the system's mobility. Agricultural and forestry operations-where tractors, harvesters, and chainsaws run on different fuel types-can consolidate their refueling into a single point. Emergency fuel services responding to natural disasters gain the ability to deploy a fully operational fueling station within hours rather than weeks. In each of these scenarios, the capital expenditure remains low compared to traditional gas station construction, and the installation costs are minimal because no civil engineering work is required.
From a cost perspective, this system delivers savings in three specific areas. First, the skid-mounted design eliminates permanent construction expenses-no concrete foundation, no underground piping, no building permit delays. Second, the dual-product capability reduces the need for multiple standalone tanks or separate fueling locations, which lowers both procurement costs and ongoing operational overhead. Third, the pre-assembled plug-and-play nature of the Eaglestar Two-Product Mini Gas Station minimizes installation labor and gets your fueling operation online faster. For fleet operators managing mixed fleets of diesel trucks and gasoline-powered service vehicles, having both fuels available at a single skid eliminates cross-site travel and reduces non-productive driving time.
Dual-Product Configuration -- Multi-compartment tank design supporting two distinct fuel types within a single skid-mounted unit
Mobility -- Skid-mounted steel frame allowing forklift loading and truck transport without permanent foundation
Plug-and-Play Deployment -- Pre-assembled and pre-tested at factory; requires only site leveling and power connection
Flow Performance -- 5–50 L/min flow range with ±0.30% metering accuracy
Power Flexibility -- AC 220V or DC 24V input, suitable for grid-tied or off-grid installations
Capacity Range -- 1,000 L to 6,000 L storage volume options
Environmental Tolerance -- -20°C to +55°C operating range; ≤75 dB noise emission
Safety Compliance -- ExdmbⅡAT3 GB explosion-proof rating for electrical systems
Cost Advantage -- Minimal capital expenditure and near-zero installation costs compared to conventional fuel stations
Primary Applications -- Rural fueling, construction and mining sites, agriculture and forestry, emergency response
| Volume | Dimension | Weight | 20ft | 40ft |
| 1000L/264GAL |
1650*1116*1120MM |
315kg | 12 | 28 |
| 2000L/528GAL | 2100*1250*1300MM | 439kg | 4 | 10 or 8 |
| 3000L/792GAL | 2100*1470*1630MM | 540kg | 4 | 8 |
| 4000L/1056GAL | 2135*1875*1670MM | 700kg | 3 | 5 |
| 5000L/1350GAL | 2600*1965*1675MM | 916kg | 2 | 4 |
| 6000L/1584GAL | 3010*1960*1895MM | 1865kg | 1 | 3 |
Two-Decade Expertise
Over 20 years industry experience since 2005.
Eaglestar Two-Product Mini Gas Station
Compact, Versatile & Portable Fueling Solution.

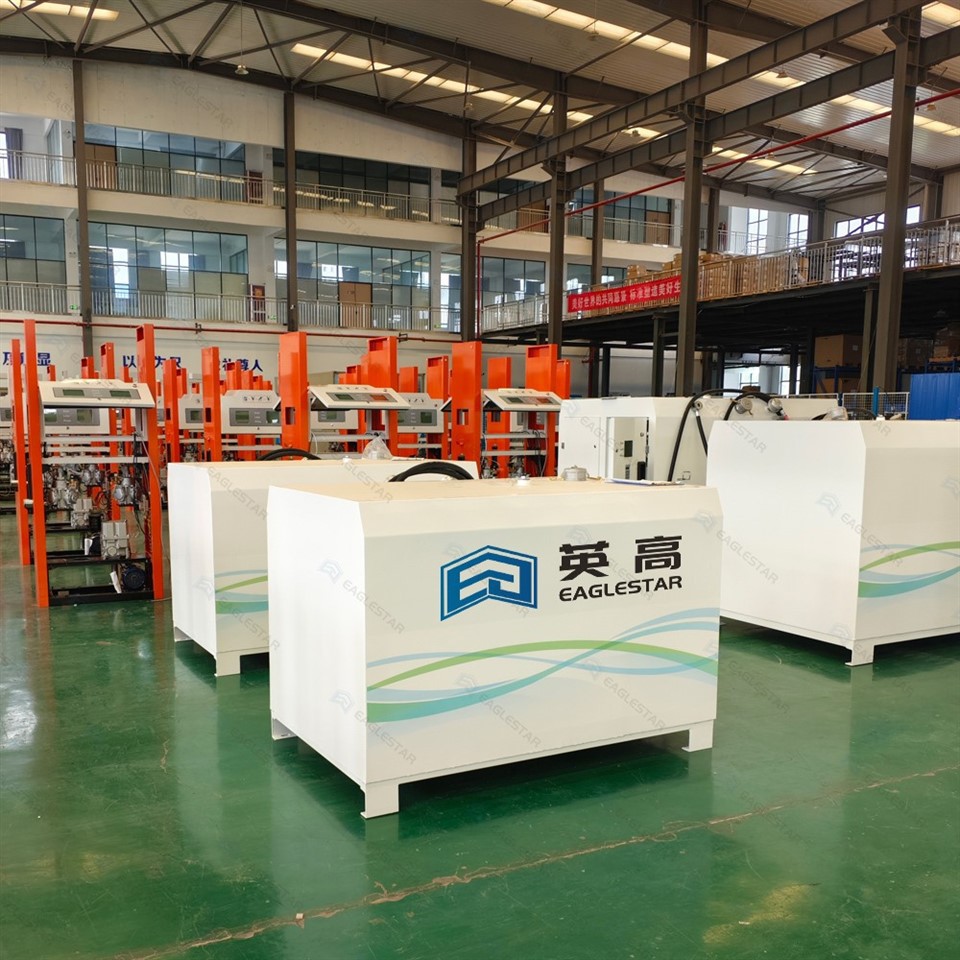

Spacious Facility
A 4000 square meters modern production plant.

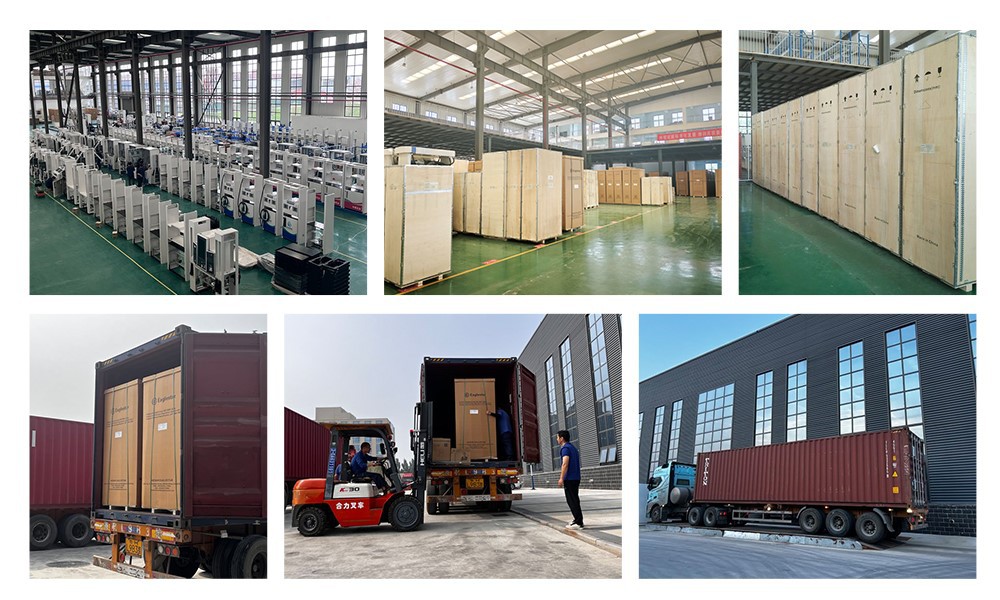

Efficient Delivery
Reliable and highly efficient delivery and packaging.
Q: Where is Eaglestar based, and what is your global reach?
A: Eaglestar is located in the Xingyang City Industrial Park, within Zhengzhou, Henan Province, China. This central location allows us to manage lgistics efficently, ensuring your orders move without unnecessary delay...
Q: Can this Eaglestar Two-Product Mini Gas Station be relocated after initial installation?
A: Yes. The skid-mounted design is specifically intended for relocation. The unit can be lifted onto a flatbed truck, transported to a new site, and redeployed without any permanent construction or deconstruction work. The only requirements at the new location are level ground and an available power source.
Q: What fuel types can be stored in the two compartments?
A: The Eaglestar Two-Product Mini Gas Station supports a wide range of fuel configurations. Common setups include diesel and gasoline, regular and premium gasoline, or diesel and kerosene. The compartments are physically separated and independently plumbed, which prevents cross-contamination between fuel products.
Q: What certifications does this system carry?
A: The fuel dispenser holds OIML certification for measurement accuracy. The electrical components carry Ex explosion-proof certification. The storage tank is manufactured according to applicable pressure vessel standards. Specific certification packages can be discussed based on your target market and regulatory requirements.
Q: Frustrated with unresponsive suppliers?
A: Get direct access to our management. Your concerns can be directed straight to Mr. JAson Wu, our principal. Request a priority quote for your high-value project.
Specify your site conditions and fuel requirements. We will match you with the right tank configuration and power setup. Contact our technical team to initiate a site assessment.
