In the world of fuel dispensers, the latest self-service fuel dispenser offers the smallest and most affordable option without sacrificing functionality. This new refueling machine is designed with simplicity and cost-efficiency in mind, making it an ideal solution for small to medium-sized fueling stations or locations seeking to minimize operational costs.
Advantages and Features
Compact Design, Maximum Efficiency: The new dispenser is the smallest self-service unit available, yet it packs a punch with dual hoses and the necessary functionality for an efficient fueling process. The simple design allows it to fit into tight spaces without compromising on performance. While the display screen is not as large as those on high-end models, it is adequate for all necessary functions, ensuring that users can interact with the machine without difficulty. The system offers essential features, including data tracking, transaction history review, and fueling options based on either volume or amount.
Enhanced Security with Anti-theft Features: One of the most significant challenges faced by gas station operators is fuel theft and runaway transactions. This automatically fuel dispenser addresses this issue head-on. Pre-payment via card swipe or QR code is required before fueling begins, preventing any unauthorized fueling. The system ensures that payment is secured upfront, effectively reducing fuel theft and minimizing the risk of escape without payment. This feature has been a critical pain point for operators, and our latest model offers a robust solution.
Dual Nozzle, High Flow Rate: With dual nozzles and a flow rate of 50/70 LPM, the automatic petrol pump caters to both high-demand and standard refueling needs. Whether for passenger vehicles or light-duty trucks, the pump provides efficient, fast service without compromising fuel accuracy. The dispenser can operate with either a 380V or 220V explosion-proof motor, ensuring versatility across various locations and voltage standards.
Simple, Streamlined Payment Options: The new self-service dispenser is equipped with a range of payment methods, including Google Pay, QR code payments, and other local payment systems. This flexibility makes it easy for customers to pay using their preferred method, accommodating modern consumer habits. The system can also handle employee cards, which are recorded in the system and do not require an internet connection to operate, offering offline functionality. For businesses looking to offer membership cards or loyalty programs, the system is easily adaptable to include these features.
Easy Data Tracking and Reporting: The integrated system allows for real-time transaction tracking, so station operators can monitor fuel sales, track revenue, and ensure operational transparency. The built-in reporting tools offer detailed statistical breakdowns of each transaction, making it easier to manage stock, evaluate performance, and perform financial reconciliations.
Effortless Employee Performance Monitoring: In addition to customer payments, the diesel dispenser can be integrated with employee performance assessments by using employee cards. This system allows station owners to keep track of fuel dispensing and monitor employee activity to ensure smooth and efficient operations.
Dual Fueling Modes: The fuel pump machine offers two fueling options: fueling by amount and fueling by volume. Customers can select their preferred fueling method based on their specific needs, whether they want to fill their tank up to a specific amount or by volume. This flexibility gives both customers and operators full control over the fueling process.
Mechanical parts
Electronic parts
Basic configuration
Basic models and standard features:
Standard duty : 50 liter per min. Optional 70 liter per min.
Vane pump and 4-piston flow meter,optional gear type pump
380Vor 220V explosion proof motor
Suction or submersible type
Rs485 and current loop for POS communication
Emergency button stop
Optional features
Built in printer for receipt
Customized logo painting on front panel
Card reader for prepay petro card
Model type
|
Model |
Pump |
Nozzle Fuel Products |
Dimension(mm) |
|
EG3-111G-H24V or G or S |
V: vane pump G: gear pump S: submersible type |
1 hose,1 product, 2 displays |
Net size: 900*450*2080 Package: 1060*500*2100 |
|
EG3-212G-H24V or G or S |
2 hose,1 product, 4 displays |
||
|
EG3-222G-H24V or G or S |
2 hose,1 product, 4 displays |

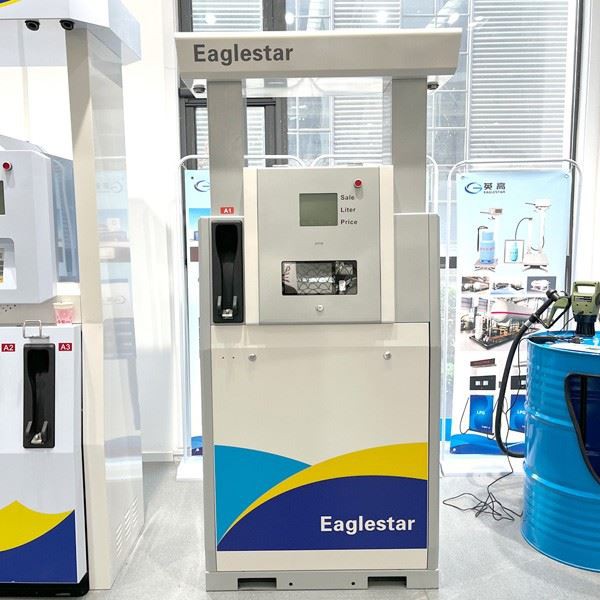

self-service Fuel Dispenser
for more video, please click here
Factory showing
Package and Delivery
To ensure safe delivery by sea, our gasoline dispensers are packaged in sturdy, insect-proof wooden crates with foam rubber cushioning for added protection.
Customer cases
Our network for exporting gasoline dispenser has grown to include many countries, allowing us to cultivate long-term partnerships with global businesses.
Customer visiting
Sincerely welcome our customers to visit our factory in China.
Certifications
Eaglestar's range of petrol dispensers is crafted through meticulous production processes and stringent quality controls, ensuring top-tier performance and reliability. With prestigious certifications in explosion-proof safety, precise metering, and ISO quality management systems, our products guarantee the highest standards of safety, accuracy, and quality. This commitment to excellence makes Eaglestar dispensers a trusted choice for fueling operations worldwide.
quality management
environmental management
CE certificate for gas station
explosion proof certification
OIML for measurement instruments
UL certificate
FAQ
Q: Are you manufacturer or trading company ?
A: We are professional manufacturer for over 20 years.
Q: When can I get the quotation?
A: We usually quote within 24 hours after get your inquiry.
Q: What is MOQ?
A: 1pc for regular products
Q: What is Payment?
A: Payment Currencies: We accept USD, EUR, and CNY. Payment Types: We accept T/T, L/C, Credit Card, PayPal, Western Union, Alipay, Wechat, and Cash.
Q: What is your terms of the delivery?
A: We accept EXW, FOB and CIF, you can choose the most convenient one for you.
Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, It takes about 5~10 work days if goods are in stock. Or 15~20 work days if the goods are not in stock.
Q: How long is the warranty?
A: According to international standards, products in standard operation is 1 year(except wearable parts &seals)
