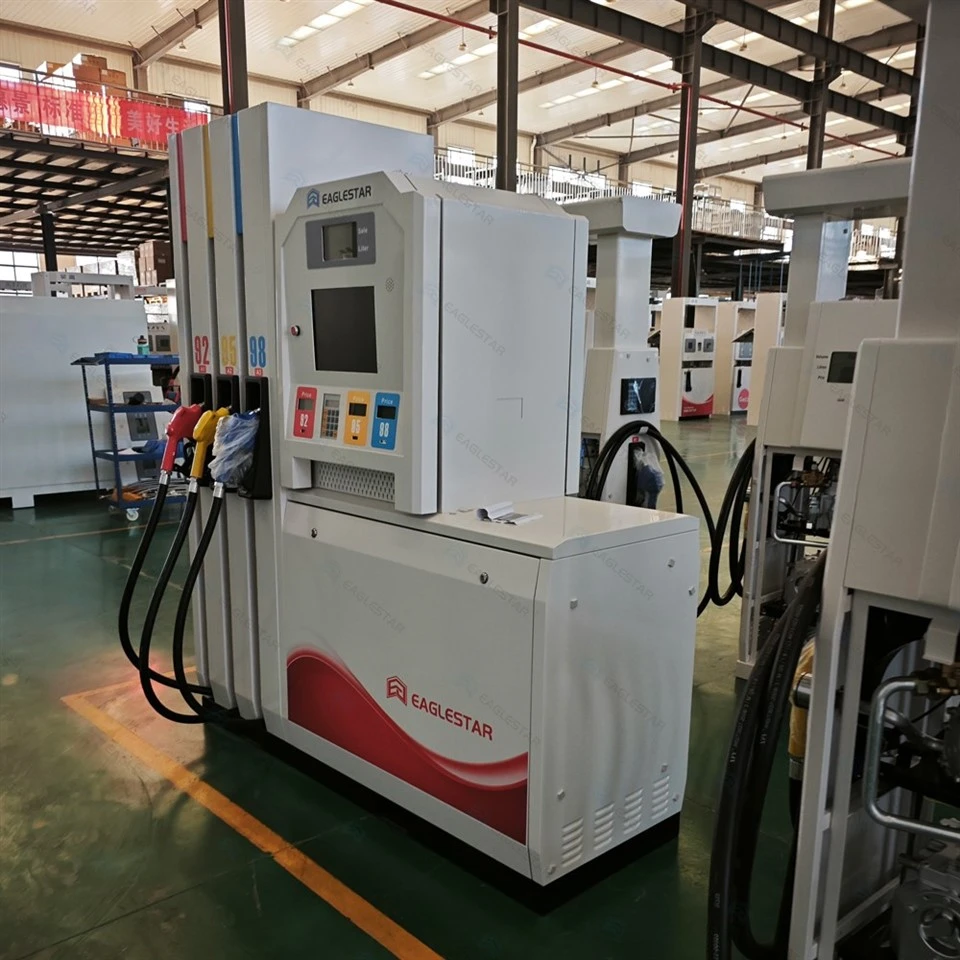

L-Shape Fuel Gas Pump

In demanding operational environments such as fuel dispensing columns at gas stations, particularly in regions with severe winter conditions, the L-shape fuel dispenser stands as an industry benchmark for durability and safety. Its core advantages originate from a design philosophy focused on resilience.

Superior structural impact resistance: The fundamental characteristic of the L-shape fuel dispenser lies in its base structure, which functions as a steady anchor. Its solid L-configuration delivers a higher degree of stability, securing the entire unit firmly to the concrete foundation. In instances where vehicles skid on icy or wet surfaces and collide with the pump island, the L-shape design demonstrates measurably greater impact resistance compared to dispensers with slimmer profiles. The structure effectively absorbs and disperses collision forces, protecting critical internal components-such as the metering system, electronic boards, and valves-from significant damage. This ensures ongoing operational continuity and reduces the frequency and cost of maintenance.

Optimized force transmission path: Thanks to its geometric form, the L-shape design channels external impact forces along the main body of the structure downward into the foundation, rather than transferring them directly to internal delicate parts. This force-transfer mechanism substantially decreases the risk of component vibration damage, extending the service life of the equipment under high-frequency use and potential accidental collisions.

Adaptability to extreme weather conditions: Eaglestar EG6 L-Shape Fuel Gas Pump maintains structural integrity and operational reliability in low-temperature and high-humidity environments. Its materials and joining techniques are specifically optimized to withstand thermal expansion and contraction as well as corrosion, ensuring consistent performance across varying climatic conditions throughout the year.







Unmatched Structural Resilience

Eaglestar EG6 L-Shape Fuel Gas Pump incorporates a core L-shape dispensing column design, which functions as an integrated anchoring system to provide foundational stability. The column's load-bearing distribution is optimized, allowing the main structure to withstand high-intensity external impacts and significantly reduce force transmission to internal critical components. Internal parts are arranged in isolated zones, with key modules featuring enhanced protection ratings to ensure consistent operation in high-traffic or intensive usage scenarios. Reinforcement techniques are applied at structural connection points, improving overall deformation resistance and extending the equipment's service life in dynamic environments. Focusing on functional protection, the Eaglestar EG6 L-Shape Fuel Gas Pump achieves reliable and continuous fuel dispensing through measured structural strength and systematic component safeguarding.

With a structurally optimized load-bearing ratio, the Eaglestar EG6 L-Shape Fuel Gas Pump effectively disperses stress across the base. The exterior housing demonstrates high impact absorption, reducing collision energy transfer by a defined percentage to internal mechanisms. Inside, critical components are separated by protective buffers and housed in reinforced modules, maintaining operational integrity under repeated use. The frame's joined sections utilize fortified fastening methods, increasing rigidity and minimizing flex during movement or incidental contact. Engineered for settings where equipment is subject to frequent interaction or potential physical interference, the Eaglestar EG6 L-Shape Fuel Gas Pump delivers sustained performance through its resilient construction and compartmentalized design, ensuring that core functions remain uninterrupted over extended periods.



Engineered for Extreme Environments

Eaglestar EG6 L-Shape Fuel Gas Pump is engineered for extreme environments, utilizing high-grade anti-corrosion materials and structural techniques to ensure long-term operational stability. The main body is constructed with 2.0 mm thick galvanized or stainless steel plates, finished with electrophoretic coating and electrostatic powder spraying to form a triple-layer composite barrier. With zinc coating coverage exceeding 98%, it provides reliable defense against road de-icing salts, humid climates, and corrosion induced by thermal cycling.

All welded seams are processed using TIG welding, achieving a defect detection pass rate of over 99% to prevent crack formation due to structural stress. Internal pipelines and critical components are treated with cathodic protection, coupled with fully sealed waterproof electrical compartments rated IP65. Within a temperature range of -40°C to +80°C, the unit maintains structural integrity without deformation or fatigue cracking. The surface coating shows no red rust after 3,000 hours of salt spray testing, and the pump is designed to operate continuously for over 10 years in harsh conditions such as coastal, sub-zero, and industrial areas without requiring structural maintenance.



Proven Trust in Key Markets

Eaglestar EG6 L-Shape Fuel Gas Pump features a familiar and practical form factor that has established a strong reputation for reliability. Its L-shape dispenser design is specifically suited and widely preferred in demanding markets such as Russia, Eastern Europe, and Central Asia. The pump is engineered to perform consistently under extreme climate conditions, from freezing winters to hot summers, ensuring uninterrupted operation. Through extended field testing, it demonstrates sustained performance over prolonged use, with minimal maintenance requirements due to accessible components that allow swift inspections and part replacements, reducing downtime. Materials are selected for corrosion and wear resistance, extending service life. In key markets, deployment across diverse environments has resulted in user reports of low failure rates and high operational efficiency, facilitating smooth fuel dispensing. The design optimizes flow paths to minimize pressure drops, enhancing dispensing speed. Safety features adhere to industry standards, balancing durability with practicality, making it a preferred choice in high-demand regions. This proven trust stems from rigorous testing and real-world application data, supporting its reliability in complex market settings. Eaglestar EG6 L-Shape Fuel Gas Pump's ability to handle variable demands while maintaining performance is evidenced by its adoption in numerous locations, where it delivers consistent output and withstands frequent use cycles. Overall, the Eaglestar EG6 L-Shape Fuel Gas Pump model represents a robust solution built on practical innovation and validated through ongoing user feedback in challenging operational contexts.







Standard flow rate (gasoline/diesel)	Heavy duty (diesel)
Flow rate	Suction	50LPM	70LPM
	Submersible	The flow rata will be subject to the submersible type on site
Electronic	Type	LCD, white backlight
	Display	Sale: 6 digits [0-9999.99]
		Liter: 6 digits [0-9999.99]
		Price: 4 digits [0-99.00]
Keypad	16 buttons high quality membrane keypad for sale and liter preset
Flow meter	Soft piston positive displacement volume flow meter with high accuracy and long lifetime
Vane pump	Vane blade type pump with aire separator combination with smooth running and low noise
Gear pump	Gear pump with air separation combination, by pass valve, two filters with strong suction long lifetime







Model	Pump	Nozzle Oil PRoducts	Dimension(mm)
EG7-222 V or S or G	G: Gear type S: Submersible type V: Vane pump	2 hose, 2 product, 2 displays	Package: 1240*550*2100
EG7-424V or S or G		4 hose, 2 product, 4 displays	Package: 1310*630*2360
EG7-636 V or S or G		6 hose, 3 product, 6 displays	Package: 1550*800*2470
EG7-634 V or S or G		6 hose, 3 product, 4 displays
EG7-848 V or S or G		8 hose, 4 product, 8 displays	Package: 1750*950*2680
