Eaglestar Integrated Fuel Storage And Loading Equipment: Precision, Safety, and Efficiency

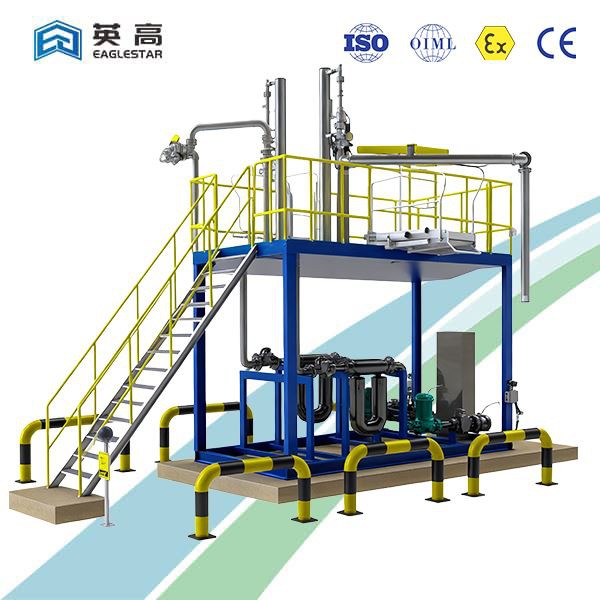

A terminal operator watches the daily log. Three percent product loss between storage and truck. Another two percent from meter drift. Somewhere in that five percent gap, margins disappear. This is not a hypothetical scenario. It is the arithmetic of imprecise transfer systems. Eaglestar builds integrated fuel storage and loading equipment to close that gap. Our Fuel Loading Skid arrives as a pre-assembled, skid-mounted unit, integrating pumps, filters, valves, meters, and an automated PLC control panel into one compact footprint. The Fuel Loading Arm attaches directly to this skid, completing a closed-loop transfer ecosystem. Every component is selected for one measurable outcome: repeatable accuracy down to 0.1% on mass flow, verified across thousands of operational cycles.





Accuracy claims are common. Delivered accuracy is rare. The Eaglestar Loading Skid employs mass flow meters from either Emerson or Endress+Hauser, two manufacturers whose hardware holds calibration within 0.1% under real loading conditions, not only in laboratory settings. These meters measure directly by mass, unaffected by temperature swings or viscosity changes that routinely compromise volumetric meters. When transferring diesel at 15°C versus 35°C, a volumetric meter drifts. The mass flow meter does not. This specification matters most during high-volume transfers-loading ten thousand liters or more per transaction, where a 0.5% error becomes fifty liters of unaccounted product per truck, per shift, per month.



Interlocked Control Architecture-Where Overfill Protection Meets Emergency Shutdown. Safety systems must act before an operator can react. The Eaglestar Fuel Storage And Loading Equipment integrates overfill protection devices directly into the control logic. When a tanker truck reaches its maximum fill level, the overfill sensor triggers an interlock. The PLC control panel executes two commands simultaneously: it closes the loading valve and cuts power to the pump. No delay. No manual override needed during the emergency window. The same interlock logic applies to vapor recovery monitoring and emergency shutdown (ESD) activation. If the system detects an alarm condition or an operator initiates a pause, the loading pump stops automatically. Once conditions return to safe parameters, the system resumes pump operation automatically. This pump-valve interlock sequence removes human reaction time from the safety equation entirely.





Multi-Liquid Compatibility Without Reconfiguration. A loading bay that handles diesel in the morning and AdBlue by afternoon requires adaptable hardware. The Eaglestar system supports top loading and bottom loading configurations for tanker trucks and railcars, with component materials selected for chemical compatibility across diesel, gasoline, AUS 32 (urea solution), and various industrial chemicals. Vapor recovery modules can be added for volatile products. The PLC control panel stores multiple product profiles, allowing operators to switch between liquid types without recalibrating meters or swapping filters between shifts. This reduces downtime between product batches and eliminates cross-contamination risks that arise from manual reconfiguration.



Specify Your Loading Configuration. Deploy the System. Measure the Difference. Audit your current transfer logs. Identify the gap between metered output and loaded volume. Then send your site specifications to our engineering team. We will return a skid configuration matched to your flow rate, liquid types, and safety requirements.





0.1% Mass Flow Accuracy–Emerson or Endress+Hauser meters measure by mass, eliminating temperature and viscosity drift inherent to volumetric devices.



Interlocked Overfill Protection– Sensor-triggered valve and pump shutdown removes human reaction time from emergency response.



Automated Pump-Valve Coordination– PLC-controlled start and stop logic resumes pump operation automatically after alarm or pause conditions clear.

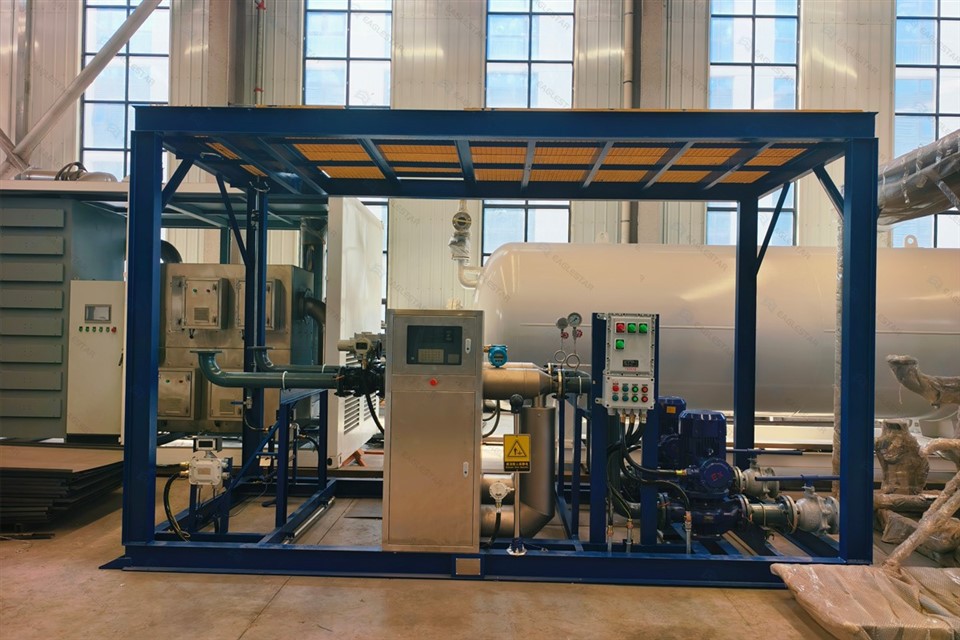

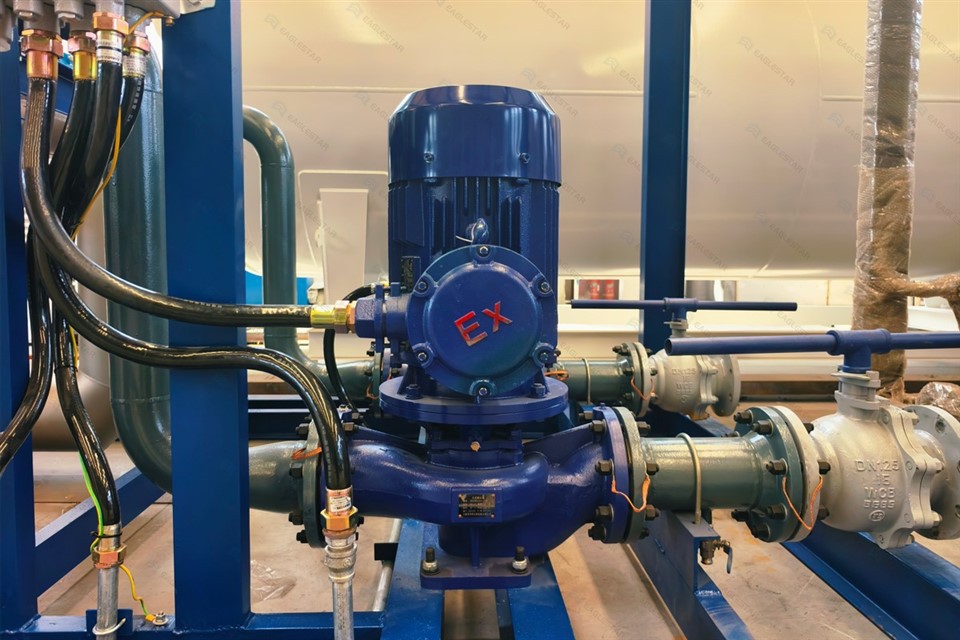

Pre-Assembled Skid Design– Integrated pumps, filters, meters, valves, and controls arrive as one unit, reducing field installation time.



Multi-Product Compatibility– Supports diesel, gasoline, AdBlue, and chemicals with stored product profiles for rapid switching.



Top and Bottom Loading Ready– Configurable for tanker trucks and railcars, with optional vapor recovery and ESD modules.





Compact design, small footprint, high integration, flexible installation
Efficiency	Can load only one tank truck at a time, which means the overall throughput is lower.
Space requirement	The layout is compact, needing only a single-side operation space of approximately 3 to 5 meters in width.
Equipment cost	It involves a single unit, which results in a lower overall cost.





Name	QTY

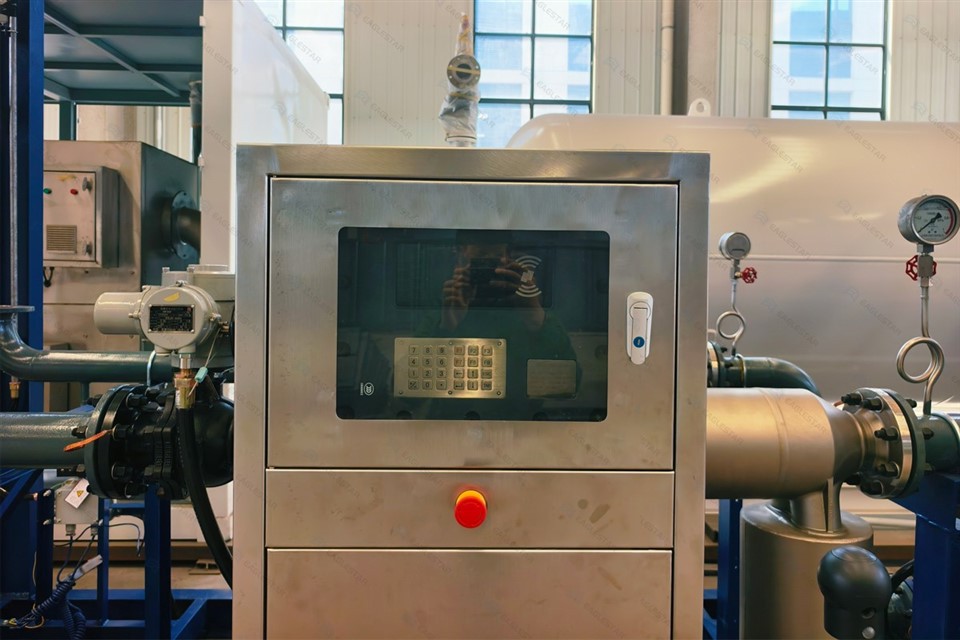

Batch Controller	1
Protective Cabinet	1
Explosion-Proof Emergency Stop Button	1
Top-Loading Overill &Anti-Static Controller	1

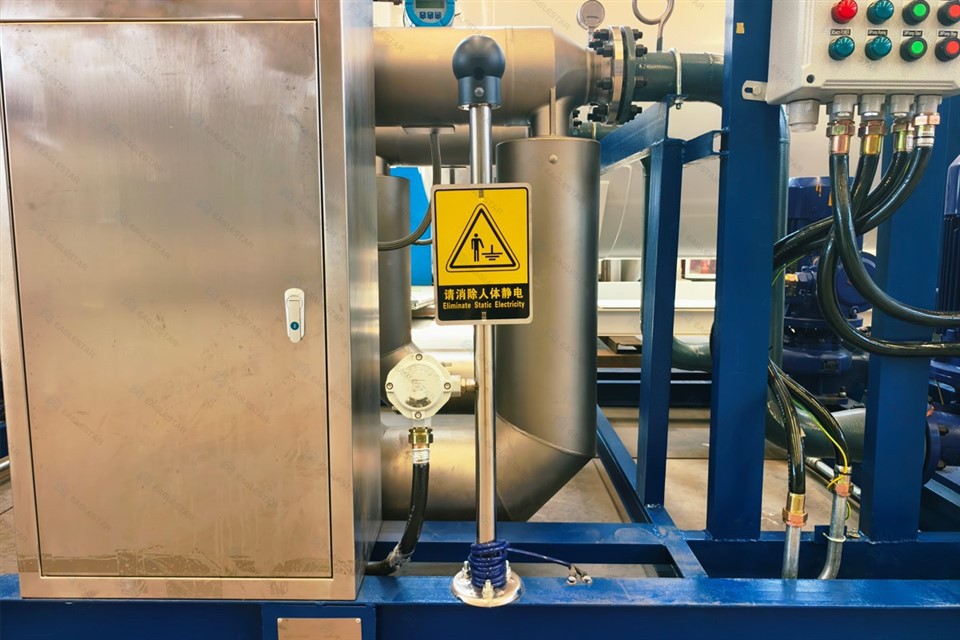

Human Body Static Release Alarm	1

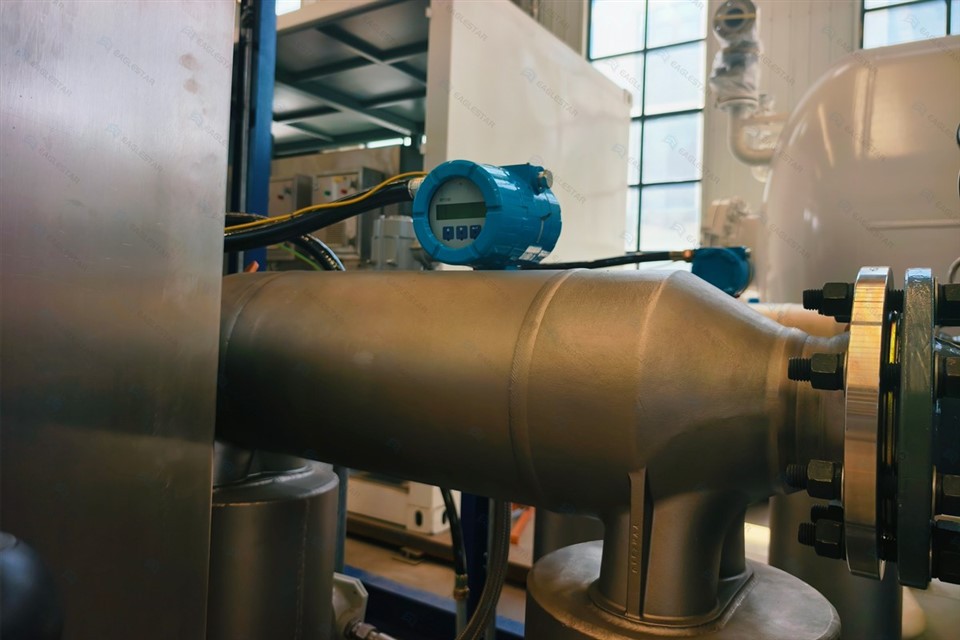

Mass Flowmeter	1
Explosion-Proof Electric Ball Valve	1
Top-Loading Arm	1
Mobile Ladder	1
